Product Overview

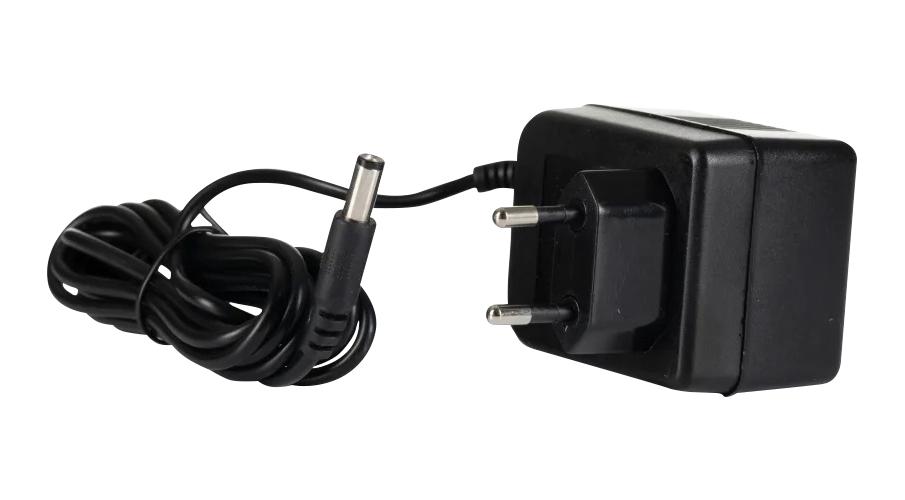

VTX-213-005-424 is a compact AC/AC linear power supply adapter. This is designed for compliance with key international safety and EMC standards, including EN61558, IEC61000-4-2 (ESD), -4-3, -4-4 (EFT), -4-5 (Surge), and -4-6 (Conducted Susceptibility). This unit features a flame-retardant enclosure rated UL94V-0 and is equipped with a standard 2.1 × 5.5 × 12mm output connector. Ideal for a wide range of low-voltage AC-driven equipment.
- UK plug type with size 2 variation
- 5VA power
- 24V AC full load output
- 200mA max output current
- Input voltage: 230/ 240V AC
- 50/60Hz input frequency
- Leakage current is 0.25mA max at 265V AC, 50Hz
- Operational temperature range from -20 to 40°C
- Safety approved: Meets EN61558 for power supply safety
- Compact & efficient: traditional linear design with robust construction
Product details
| Power Supply Applications |
ITE & Household |
| Output Power Max |
5VA |
| Output Current |
200mA |
| Output Connector |
Barrel Plug 2.1mm x 5.5mm x 12mm |
| Power Supply Output Type |
Fixed |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1 Output |
| Output Voltage VAC |
24VAC |
| Plug Type |
EU |
| Input Voltage AC Max |
240V |
| Product Range |
VTX-213 Series |
Other details
| Brand |
VIGORTRONIX |
| Part Number |
VTX-213-005-424 |
| Quantity |
Each |
| Technical Data Sheet (511.55KB) EN |
View or download |
