Description
Product Overview

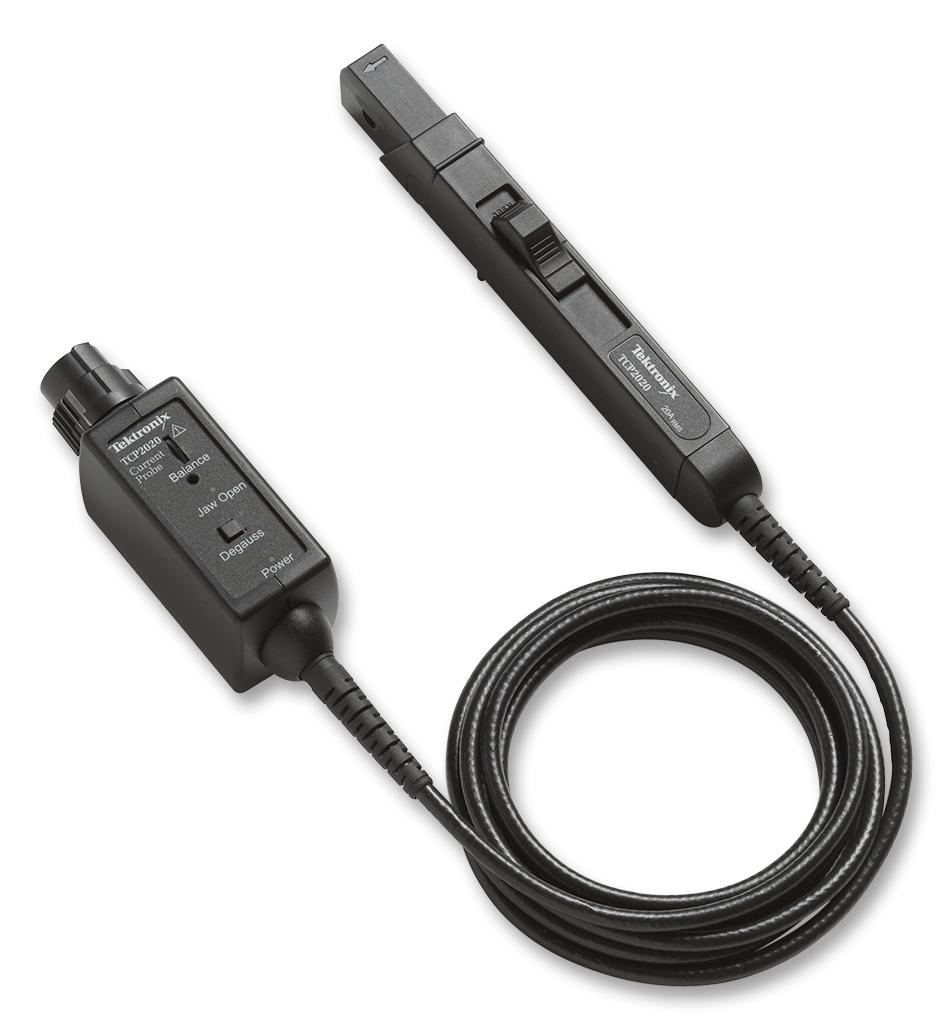

TCP2020 - PROMO is a high-performance easy-to-use AC/DC current probe designed for use with a variety of oscilloscopes. The TCP2020 is designed for use with any instrument with BNC inputs and greater than 100kΩ input termination. This AC/DC current probe provides sufficient performance to support 50MHz measurement system bandwidth. The TCP2020 provides a maximum 20ARMS measurement range. This probe provides excellent accuracy to current levels as low as 10mA, important for meeting today's challenging current measurement needs.
- Easy-to-use and accurate AC/DC current measurements
- DC to greater than 50MHz bandwidth
- Core jaw diameter of 5mm (0.2")
- Accurately measures current levels as low as 10mA per division
- High accuracy with typically less than 1% DC gain error
- Split-core construction allows easy circuit connection
- Low noise and DC drift
- 20ARMS maximum current capability
- 100A peak pulse current capability
- 10mA/mV sensitivity
Contents
TCP2020 AC/DC current probe, Instruction manual (English) (071-3002-xx), Probe ground lead – 6" length (196-3120-xx), Nylon carrying case (016-1952-xx), AC adapter (specify power plug option when ordering).
Notes
EMEA Exclusive: Get 30% off select probes and 30% off warranty with eligible probe purchases. Offer valid until 2nd October 2026.
Product details
| Meter Side Connector | BNC Plug |
| Current Range Max | 20A |
| For Use With | Tektronix TDS Series Oscilloscopes |
| SVHC | No SVHC (25-Jun-2025) |
| Probe Side Connector | Current Clamp |
| Current Range Min | 10mA |
| Product Range | - |
Other details
| Brand | TEKTRONIX |
| Part Number | TCP2020 - PROMO |
| Quantity | Each |
| Technical Data Sheet (328.94KB) EN | View or download |
| Manufacturer Product Page (112.51KB) EN | View or download |
| Enhanced Product Overview (2.19MB) EN | View or download |
