Product Overview

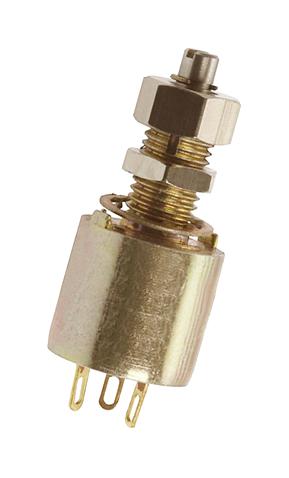

ETI SYSTEMS RV6NAYSD103A Rotary Potentiometer, 10 kohm, 1 Turns, Linear, 500 mW, ± 10%, RV6 Series
Product details
| Track Resistance |
10kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 10% |
| Potentiometer Mounting |
Panel Mount |
| No. of Gangs |
1 |
| Shaft Length |
22.225mm |
| Potentiometer Type |
- |
| Potentiometer Terminals |
Solder Lug |
| Product Length |
38.3mm |
| Product Height |
- |
| Operating Temperature Max |
125°C |
| No. of Turns |
1Turns |
| Power Rating |
500mW |
| Product Range |
RV6 Series |
| Shaft Diameter |
3.175mm |
| Adjustment Type |
Screwdriver Slot |
| Temperature Coefficient |
- |
| Resistor Technology |
Carbon |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-65°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ETI SYSTEMS |
| Part Number |
RV6NAYSD103A |
| Quantity |
Each |
| Technical Data Sheet (184.64KB) EN |
View or download |
