Product Overview

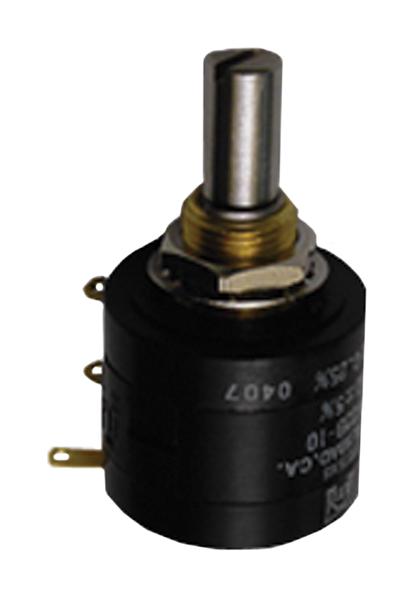

ETI SYSTEMS MW22B-3-500 Rotary Potentiometer, 500 ohm, 3 Turns, Linear, 1 W, ± 5%, MW22B Series
Product details
| Track Resistance |
500ohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 5% |
| Potentiometer Mounting |
Panel Mount |
| No. of Gangs |
1 |
| Shaft Length |
20.83mm |
| Potentiometer Type |
- |
| Potentiometer Terminals |
Solder Lug |
| Product Length |
39.88mm |
| Product Height |
- |
| Operating Temperature Max |
105°C |
| No. of Turns |
3Turns |
| Power Rating |
1W |
| Product Range |
MW22B Series |
| Shaft Diameter |
6.35mm |
| Adjustment Type |
Screwdriver Slot |
| Temperature Coefficient |
± 80ppm/°C |
| Resistor Technology |
Wirewound |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ETI SYSTEMS |
| Part Number |
MW22B-3-500 |
| Quantity |
Each |
| Technical Data Sheet (194.33KB) EN |
View or download |
