SIRETTA ASMQM100F058L11 RF / Coaxial Cable Assembly, Low Loss, 6GHz Frequency, 3.3 ft, 1 m, SLL200, QMA-Male, FME Socket

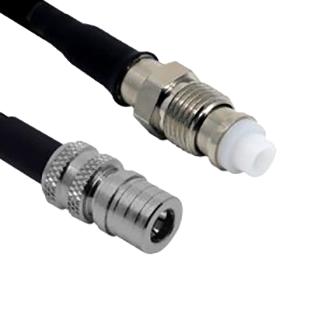

The ASMQM100F058L11 is a 1m low loss SLL200 coaxial cable assembly fitted with a QMA male straight connector at one end and an FME female straight connector at the other. Designed for high performance RF applications, it supports frequencies from DC to 6GHz, making it ideal for cellular routers, IoT devices, lab testing, wireless communications, and modular RF systems. Built with a robust multi layer shielded construction, the SLL200 cable delivers excellent screening effectiveness, low attenuation, and a stable 50Ω impedance. The assembly is also fully RoHS and REACH compliant, and is suitable for harsh environments with an operating temperature range from -40°C to +90°C.

• 1m QMA male straight to FME female straight RF cable assembly
• Suitable for cellular routers, IoT devices, lab setups, and RF test equipment
• Quick lock QMA connector for fast, secure mating; FME female for compact RF interfaces
• Robust construction for reliable long term RF performance
• Low loss SLL200 coaxial cable construction
• Impedance: 50Ω ±3Ω for stable RF performance
• Suggested working frequency range: DC to 6GHz
• High screening effectiveness: <gt/>90 dB
• Return loss: <gt/>20 dB for signal integrity
• Low attenuation across frequency bands (e.g., 0.58 dB/m @ 30MHz, 3.26 dB/m @ 900MHz)
• Velocity of propagation: 80.3%
• Spark test rated to 3kV
• Voltage withstand: 1kV
• Inner conductor: 1.12 mm bare copper
• Insulation: FEP, 2.95 mm diameter
• Primary shield: bonded aluminium foil (90% coverage)
• Secondary shield: tinned copper wire braid (90% coverage)
• Jacket: black PE, 4.95 mm diameter
• Operating temperature range: −40°C to +85°C
• Storage temperature range: −40°C to +85°C
