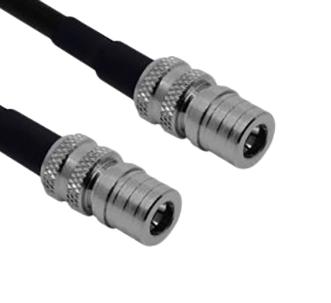

SIRETTA ASMQM2000QM058L11 RF / Coaxial Cable Assembly, Low Loss, 6GHz Frequency, 65.6 ft, 20 m, SLL200, QMA-Male

The ASMQM2000QM058L11 is a 20m low loss SLL200 coaxial cable assembly fitted with QMA male straight connectors at both ends. Designed for high performance RF applications, it supports frequencies from DC to 6GHz, making it ideal for cellular routers, IoT devices, lab testing, wireless communications, and modular RF systems. Built with a robust multi layer shielded construction, the SLL200 cable ensures excellent screening effectiveness, low attenuation, and stable 50Ω impedance. The assembly is fully RoHS and REACH compliant and suitable for use in harsh environments with an operating range from 40°C to +90°C.

• 20m QMA male straight to QMA male straight RF cable assembly
• Suitable for cellular routers, IoT devices, lab setups, and RF test equipment
• Quick lock QMA connectors for fast, secure mating
• Robust construction for reliable long term RF performance
• Low loss SLL200 coaxial cable construction
• Impedance: 50Ω ±3Ω for stable RF performance
• Suggested working frequency range: DC to 6GHz
• High screening effectiveness: <gt/>90 dB
• Return loss: <gt/>20 dB for signal integrity
• Low attenuation across frequency bands (e.g., 0.58 dB/m @ 30MHz, 3.26dB/m @ 900MHz)
• Velocity of propagation: 80.3%
• Spark test rated to 3kV
• Voltage withstand: 1kV
• Inner conductor: 1.12mm bare copper
• Insulation: FEP, 2.95 mm diameter
• Primary shield: bonded aluminium foil (90% coverage)
• Secondary shield: tinned copper wire braid (90% coverage)
• Jacket: black PE, 4.95 mm diameter
• Operating temperature range: 40°C to +85°C
• Storage temperature range: 40°C to +85°C
