Product Overview

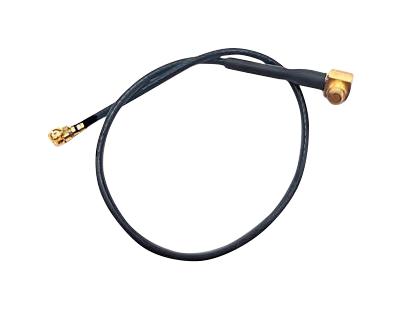

BU-4150103150 is an U.FL male right angle to MMCX male right angle, shielded cable assembly. It is a low-loss, high-frequency cable with a characteristic impedance of 50 ohm.
- 1.37mm PTFE coaxial cable
- 6GHz frequency
- 200V dielectric withstanding voltage
- Connector A: gold plated U.FL plug RA
- Connector B: gold plated MMCX plug RA
- Operating temperature range from -65°C (-85°F) to 165°C (329°F)
- Length is 5.91inch (150mm)
Product details
| Cable Length - Imperial |
5.9" |
| Coaxial Cable Type |
1.37mm |
| Jacket Colour |
- |
| SVHC |
No SVHC (19-Jan-2021) |
| Cable Length - Metric |
150mm |
| Impedance |
50ohm |
| Product Range |
BU-4150103 Series |
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
BU-4150103150 |
| Quantity |
Each |
| Technical Data Sheet (253.65KB) EN |
View or download |
