Product Overview

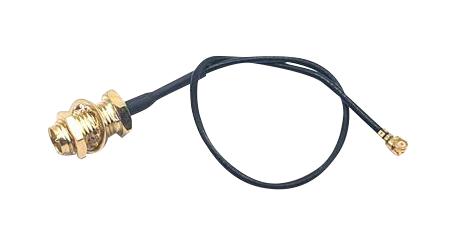

BU-4150100150 is a SMA bulkhead to U.FL right angle cable assembly. It is a low-loss, high-frequency cable with a characteristic impedance of 50 ohm.
- Connector A: bulkhead – front side
- Connector B: U.FL (UMCC) plug, right angle
- Length is 5.906" (150mm)
- Nickel plated brass body material
- 0 to 6GHz frequency range
- Operating temperature range from -40°C to 90°C
- Meets or exceeds the applicable paragraph of MIL-C-39012
Product details
| Connector to Connector |
SMA RP Bulkhead Jack to 90° U.FL Plug |
| Cable Length - Metric |
150mm |
| Connector Type A |
SMA RP Bulkhead Jack |
| Impedance |
50ohm |
| Product Range |
BU-4150100 Series |
| Cable Length - Imperial |
5.9" |
| Coaxial Cable Type |
- |
| Connector Type B |
90° U.FL Plug |
| Jacket Colour |
- |
| SVHC |
No SVHC (19-Jan-2021) |
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
BU-4150100150 |
| Quantity |
Each |
| Technical Data Sheet (291.13KB) EN |
View or download |
