Product Overview

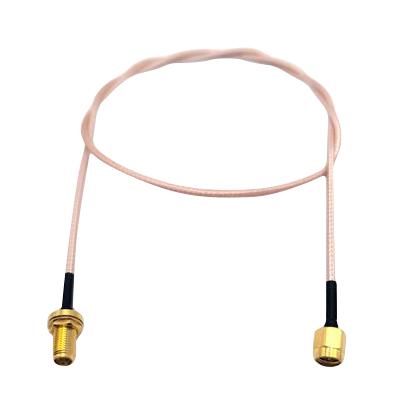

BU-4150035024 is a SMA male straight to SMA female straight, shielded cable assembly. This RG-316 DS cable is low-loss, high-frequency cable with a characteristic impedance of 50 ohm.
- 12.4GHz frequency
- 250V working voltage
- 750V dielectric withstanding voltage
- Connector A: gold plated SMA male plug straight
- Connector B: gold plated SMA female plug straight
- Length is 24" (609.6mm)
- Operating temperature range from -65°C (-85°F) to 165°C (329°F)
Product details
| Connector to Connector |
SMA Plug to SMA Jack |
| Cable Length - Metric |
609.6mm |
| Connector Type A |
SMA Plug |
| Impedance |
50ohm |
| Product Range |
BU-4150035 Series |
| Cable Length - Imperial |
24" |
| Coaxial Cable Type |
RG316-DS |
| Connector Type B |
SMA Jack |
| Jacket Colour |
- |
| SVHC |
No SVHC (19-Jan-2021) |
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
BU-4150035024 |
| Quantity |
Each |
| Technical Data Sheet (220.82KB) EN |
View or download |
