Product Overview

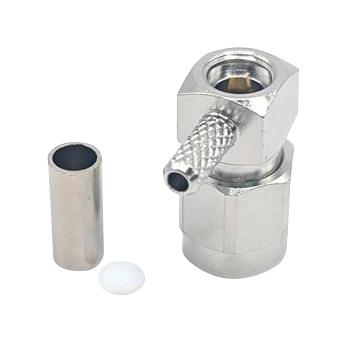

BU-1420403106 is a crimped, right angled SMA plug.
- 50 ohm impedance
- 0 to 12.4GHz frequency range
- 250V RMS working voltage at sea level and 750V RMS min dielectric withstanding voltage at sea level
- 4milliohms contact resistance (centre)
- 7-10inch pounds mating torque
- Gold plated brass body and nuts
- Gold plated brass contact material
- PTFE insulation
- Meets or exceeds the applicable paragraph of MIL-C-39012
- Operating temperature range from -65°C (-85°F) to 165°C (329°F)
Product details
| Connector Type |
SMA Coaxial |
| Coaxial Termination |
Crimp |
| Coaxial Cable Type |
- |
| Contact Plating |
Gold Plated Contacts |
| Connector Mounting |
Cable Mount |
| SVHC |
No SVHC (19-Jan-2021) |
| Connector Body Style |
Right Angle Plug |
| Impedance |
50ohm |
| Contact Material |
Brass |
| Frequency Max |
12.4GHz |
| Product Range |
- |
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
BU-1420403106 |
| Quantity |
Each |
| Technical Data Sheet (71.00B) EN |
View or download |
