Product Overview

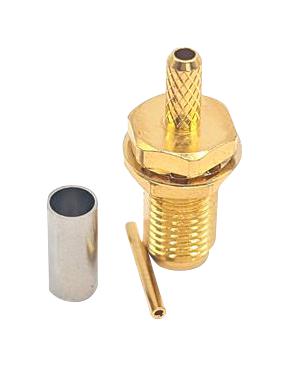

BU-1420303411 is a crimped, straight SMA jack.
- 50 ohm impedance
- 0 to 12.4GHz frequency range
- 250V RMS working voltage at sea level
- 3milliohms contact resistance
- 7-10inch pounds mating torque
- Gold plated brass body material
- Gold plated copper contact material
- PTFE insulation
- Meets or exceeds the applicable paragraph of MIL-C-39012
- Operating temperature range from -65°C (-85°F) to 165°C (329°F)
Product details
| Connector Type |
SMA Coaxial |
| Coaxial Termination |
Crimp |
| Coaxial Cable Type |
- |
| Contact Plating |
Gold Plated Contacts |
| Connector Mounting |
Cable Mount |
| SVHC |
No SVHC (19-Jan-2021) |
| Connector Body Style |
Straight Jack |
| Impedance |
50ohm |
| Contact Material |
Copper |
| Frequency Max |
- |
| Product Range |
- |
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
BU-1420303411 |
| Quantity |
Each |
| Technical Data Sheet (71.00B) EN |
View or download |
