Product Overview

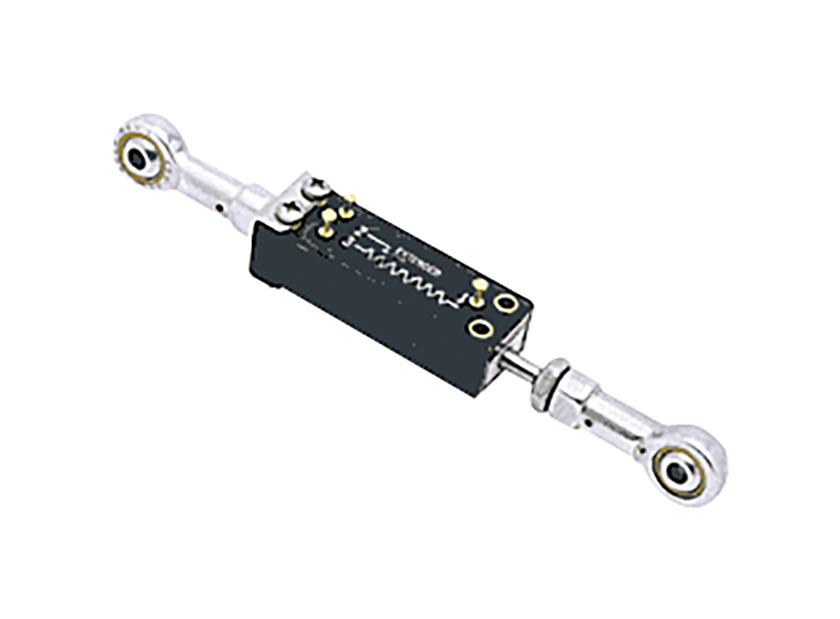

ETI SYSTEMS LCP12Y-50-10K Linear Motion Potentiometer, 10 kohm, ± 20%, 700 mW, LCP12 Series, Turret
Product details
| Track Resistance |
10kohm |
| Power Rating |
700mW |
| Product Range |
LCP12 Series |
| Resistor Technology |
Conductive Plastic |
| Product Length |
76.2mm |
| Product Height |
11.11mm |
| Operating Temperature Max |
105°C |
| Resistance Tolerance |
± 20% |
| Length of Travel |
- |
| Potentiometer Terminals |
Turret |
| Temperature Coefficient |
± 400ppm/°C |
| Product Width |
12.7mm |
| Operating Temperature Min |
-30°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ETI SYSTEMS |
| Part Number |
LCP12Y-50-10K |
| Quantity |
Each |
| Technical Data Sheet (60.00B) EN |
View or download |
