Product Overview

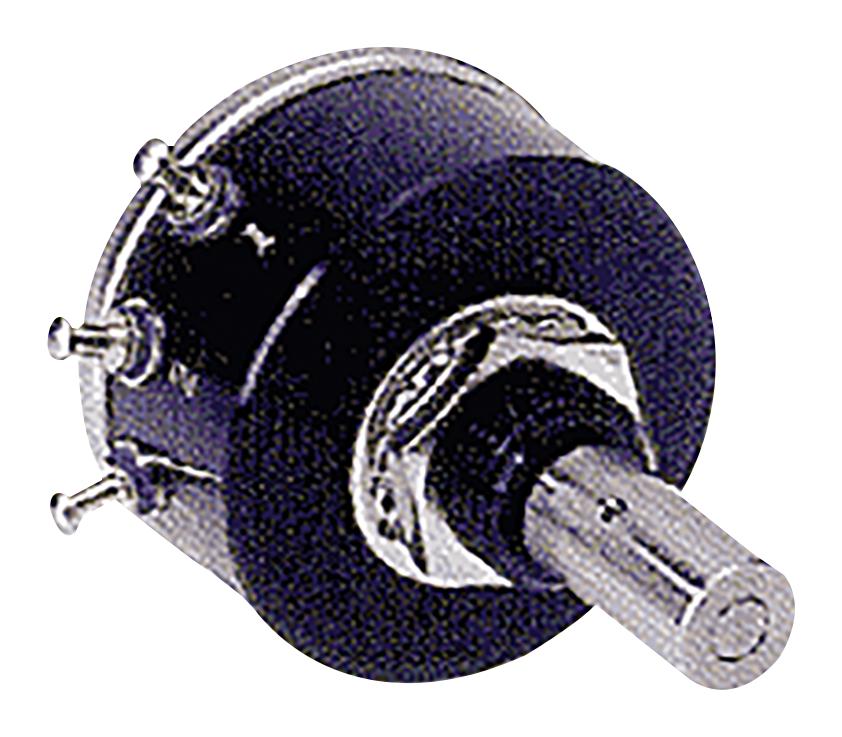

ETI SYSTEMS SP30B-10K Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Linear, 1.5 W, ± 10%, SP30B Series
Product details
| Track Resistance |
10kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 10% |
| Potentiometer Mounting |
Panel Mount |
| No. of Gangs |
1 |
| Shaft Length |
20.638mm |
| Potentiometer Type |
Precision |
| Potentiometer Terminals |
Turret |
| Product Length |
35.62mm |
| Product Height |
- |
| Operating Temperature Max |
125°C |
| No. of Turns |
1Turns |
| Power Rating |
1.5W |
| Product Range |
SP30B Series |
| Shaft Diameter |
6.35mm |
| Adjustment Type |
Screwdriver Slot |
| Temperature Coefficient |
- |
| Resistor Technology |
Conductive Plastic |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ETI SYSTEMS |
| Part Number |
SP30B-10K |
| Quantity |
Each |
