Product Overview

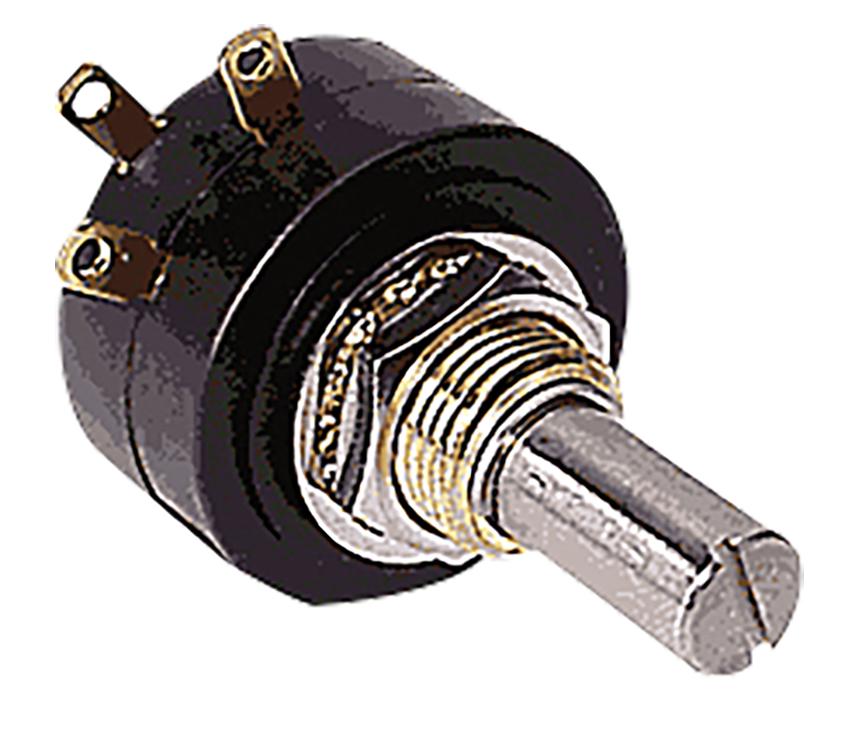

ETI SYSTEMS SW22E-2K Rotary Potentiometer, Wirewound, 2 kohm, 1 Turns, Linear, 500 mW, ± 3%, SW22E Series
Product details
| Track Resistance |
2kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 3% |
| Potentiometer Mounting |
Panel Mount |
| No. of Gangs |
1 |
| Shaft Length |
20.63mm |
| Potentiometer Type |
- |
| Potentiometer Terminals |
Solder Lug |
| Product Length |
32.82mm |
| Product Height |
- |
| Operating Temperature Max |
105°C |
| No. of Turns |
1Turns |
| Power Rating |
500mW |
| Product Range |
SW22E Series |
| Shaft Diameter |
6.35mm |
| Adjustment Type |
Screwdriver Slot |
| Temperature Coefficient |
± 20ppm/°C |
| Resistor Technology |
Wirewound |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ETI SYSTEMS |
| Part Number |
SW22E-2K |
| Quantity |
Each |
| Technical Data Sheet (191.77KB) EN |
View or download |
