Product Overview

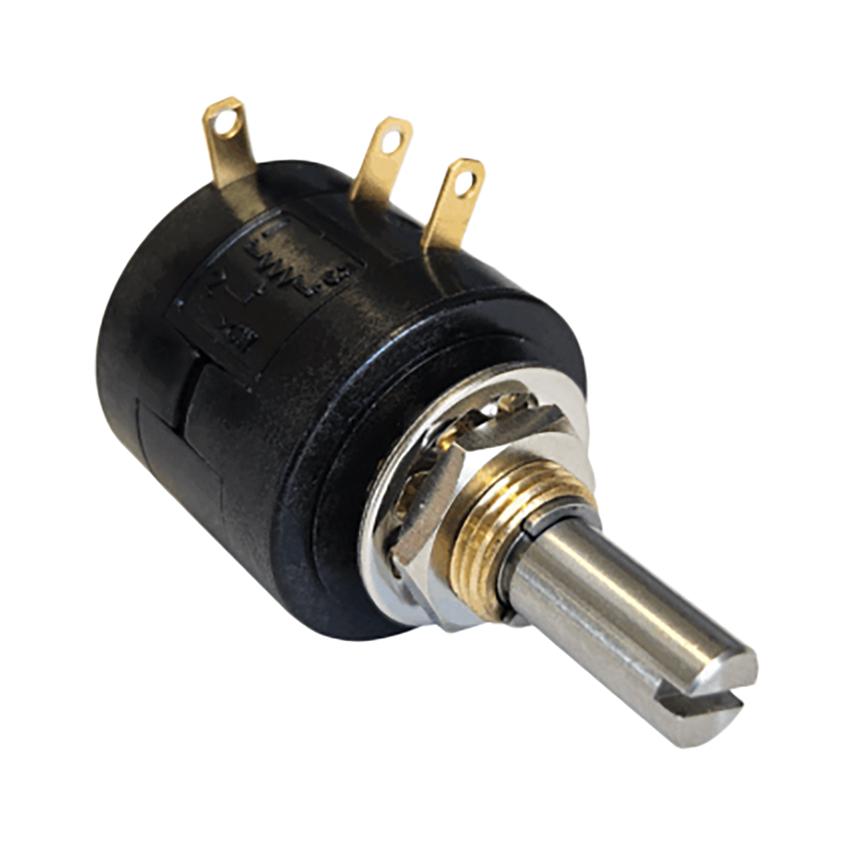

ETI SYSTEMS EH22HHP-10N-10K Rotary Potentiometer, Hybrid Element, 10 kohm, 10 Turns, Linear, 2 W, ± 10%, EH22HHP Series
Product details
| Track Resistance |
10kohm |
| Track Taper |
Linear |
| Resistance Tolerance |
± 10% |
| Potentiometer Mounting |
Panel Mount |
| No. of Gangs |
1 |
| Shaft Length |
20.6mm |
| Potentiometer Type |
Precision |
| Resistor Case / Package |
- |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Turns |
10Turns |
| Power Rating |
2W |
| Product Range |
EH22HHP Series |
| Shaft Diameter |
6mm |
| Adjustment Type |
Screwdriver Slot |
| Temperature Coefficient |
± 100ppm/°C |
| Potentiometer Terminals |
Solder Lug |
| Product Length |
39.6mm |
| Product Height |
- |
| Operating Temperature Max |
105°C |
Other details
| Brand |
ETI SYSTEMS |
| Part Number |
EH22HHP-10N-10K |
| Quantity |
Each |
| Technical Data Sheet (66.00B) EN |
View or download |
