Product Overview

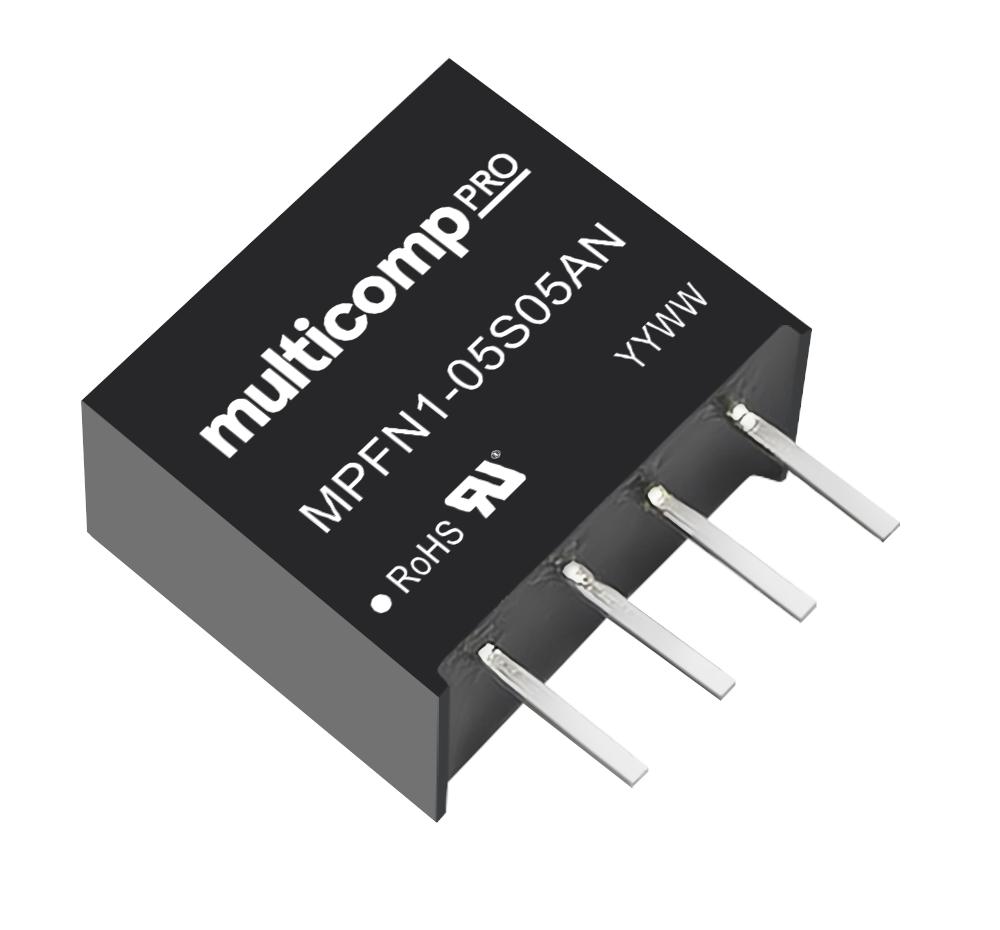

MPFN1-24S3V3AN is a 1W, isolated DC to DC converter suitable for series of product can be used in field of instrument, communication, pure digital circuit, general low frequency analogue circuit, relay drive circuit and data exchange circuit applications.
- Input voltage range from 21.6 to 26.4V DC (24V DC nom)
- Output voltage/current (Vo/Io) is 3.3V DC and 303/30mA Io(max/min)
- 52mA typ full load I/P current at nominal voltage, 8mA typ no load I/P current at nominal voltage
- 2400µF max capacitive load
- 75/40 (max/min) ripple current (20MHz)
- 77% typ efficiency at full load/nom voltage
- Isolation voltage 1500V DC
- Operating temperature from -40°C to +105°C
- Black plastic case, flame class UL94 V-O
- Natural air colling method
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
303mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.1mm |
| Input Voltage DC Min |
21.6V |
| Product Range |
MPFN1-AN |
| DC / DC Converter Type |
SIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
3.3V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
24V |
| Width |
6mm |
| Depth |
11.5mm |
| Input Voltage DC Max |
26.4V |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MPFN1-24S3V3AN |
| Quantity |
Each |
| Technical Data Sheet (519.88KB) EN |
View or download |
