Product Overview
MPFN1-15S24B3N is a 1W, isolated DC to DC converter suitable for series of product can be used in field of instrument, communication, pure digital circuit, general low frequency analogue circuit, relay drive circuit and data exchange circuit applications.
- Input voltage range from 13.5 to 16.5V DC (15V DC nom)
- Output voltage/current (Vo/Io) is 24V DC
- 88mA typ full load I/P current at nominal voltage, 12mA typ no load I/P current at nominal voltage
- 10µF max capacitive load
- 120mVp-p ripple and noise
- 74% typ efficiency
- Isolation voltage 3000V DC
- Black flame-retardant heat-resistant plastic(UL94-V0) material
- 100kHz (Typ) switching frequency
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
42mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10mm |
| Input Voltage DC Min |
13.5V |
| Product Range |
MPFN1-B3N |
| DC / DC Converter Type |
SIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
15V |
| Width |
6mm |
| Depth |
19.5mm |
| Input Voltage DC Max |
16.5V |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MPFN1-15S24B3N |
| Quantity |
Each |
| Technical Data Sheet (617.98KB) EN |
View or download |

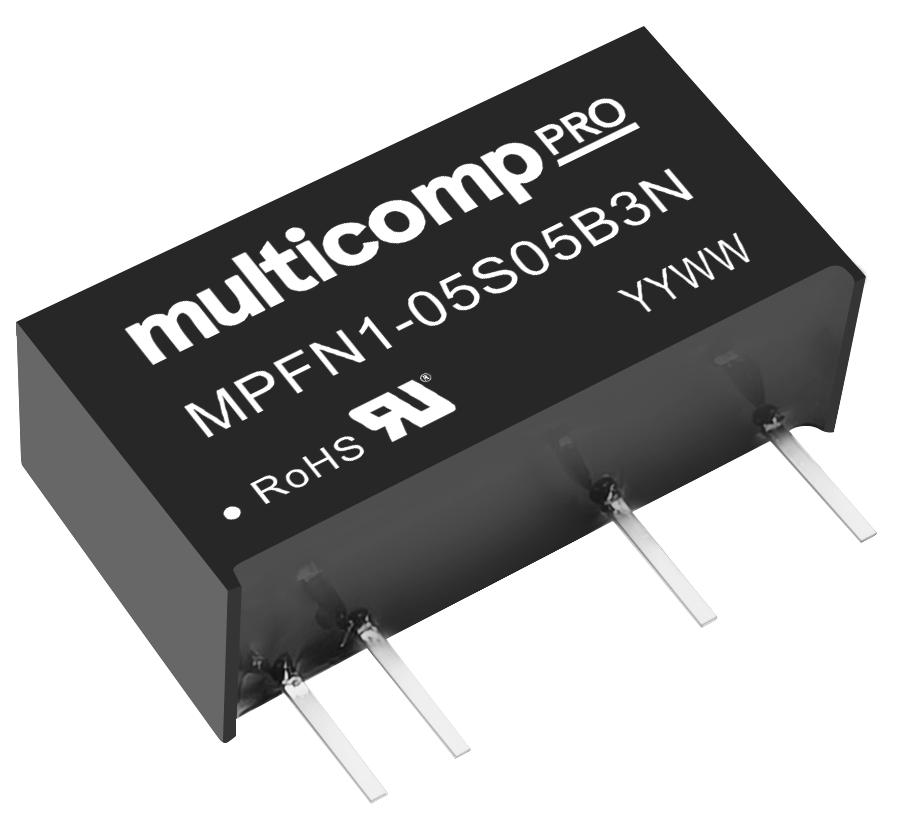

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
