Description
Product Overview
CYW9RPIWIFIBTEVKTOBO1 is a CYW9RPIWIFIBT-EVK Wi-Fi & Bluetooth® evaluation kit with Raspberry Pi CM4 host. This is an excellent tool that enables developers to evaluate, prototype, and develop various IoT and audio applications using Infineon's Wi-Fi-Bluetooth® combo chipsets on the Linux platform. The kit is built around the Raspberry Pi Compute Module 4 Lite, helping users to assess the performance of Infineon's combo chipsets and create applications that leverage its capabilities. The CYW9RPIWIFIBT-EVK Evaluation Kit supports peripheral component interconnect express (PCIe) and secure digital input-output (SDIO) interfaces for Wi-Fi and HCI UART for Bluetooth®, allowing the user to interface different combo chipsets to the host via the M.2 E-Key standard interface connector on the baseboard. The Raspberry Pi CM4 host is situated on the baseboard. A HDMI port, four USB Type-A connectors, 1G Ethernet port, an audio-out jack are also provided on the baseboard for user accessibility.
- Raspberry Pi CM4 module as the host
- M.2 E-Key radio module interface (2EA module connected by default)
- USB Type-C connector for power and debug logs
- Four USB Type-A ports to connect peripherals
- 1G Ethernet port
- HDMI port to connect a display
- Raspberry Pi device USB Type-C port
- microSD card connector
- One audio-out jack
- Two tri-band dipole antennas
Contents

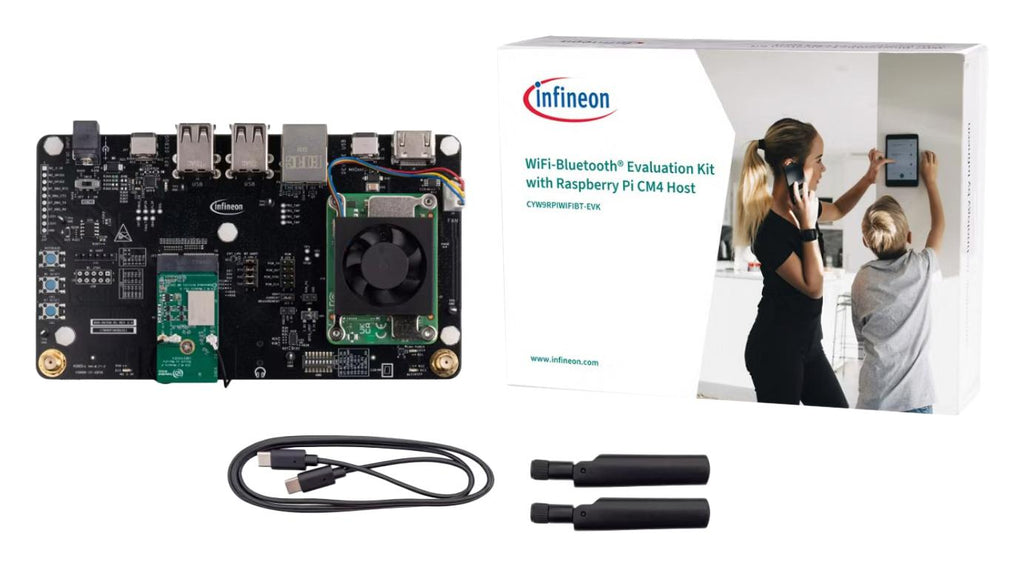

CYW9RPIWIFIBT-EVK evaluation board (with Raspberry-Pi CM4 host module and CYW955573 radio M.2 card), Two tri-band dipole antennas, USB Type-C to Type-C cable, Quick start guide.
Product details
| Board Type | Evaluation Kit |
| Silicon Core Number | CYW55573 |
| Application Sub Type | Bluetooth and WiFi |
| Product Range | - |
| Silicon Manufacturer | Infineon |
| IC Function | Wi-Fi & Bluetooth Combo IC |
| Kit Contents | Evaluation Board CYW55573 |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | INFINEON |
| Part Number | CYW9RPIWIFIBTEVKTOBO1 |
| Quantity | Each |
| Technical Data Sheet (35.67MB) EN | View or download |
