Product Overview

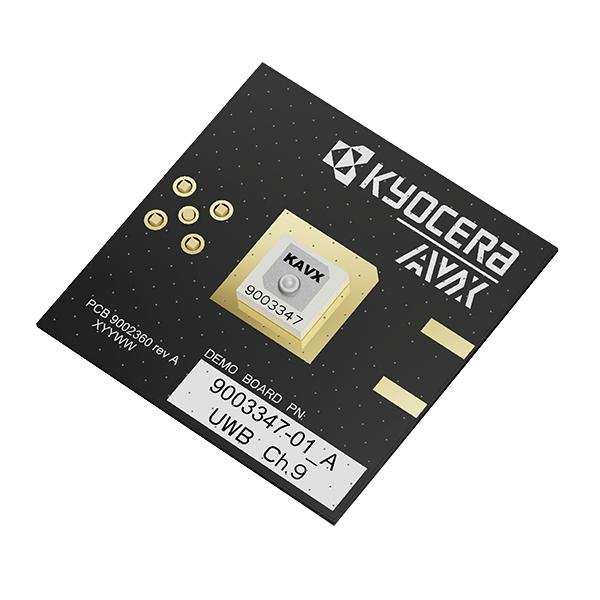

9003347-01 is an UWB patch antenna evaluation board. Suitable for longer communication range with its strong signal transmission and reception. This UWB patch is ideal for tracking, precise indoor positioning and for secure access control. Suitable for asset tracking, embedded designs, real-time location systems (RTLS), contactless payment, IoT, industrial devices, smart home/cities, healthcare applications (FDA Class I), communication security applications.
- 9003347 patch antenna has small form factor
- It is very directional with a peak gain of 6.2dBi
- Frequency range from 7750 to 8250MHz
- Efficiency of 58%
- Linear polarization
- Directional radiation pattern
- Operating temperature range from -40 to +85°C
- Standard antenna eliminates design fees and cycle time associated with a custom solution
- Quicker time-to-market
Product details
| Silicon Manufacturer |
Kyocera AVX |
| Silicon Core Number |
9003347 |
| Kit Contents |
Evaluation Board 9003347 |
| SVHC |
No SVHC (25-Jun-2025) |
| Board Type |
Demo Board |
| IC Function |
UWB Patch Antenna |
| Product Range |
- |
Other details
| Brand |
KYOCERA AVX |
| Part Number |
9003347-01 |
| Quantity |
Each |
| Technical Data Sheet (799.15KB) EN |
View or download |
