Product Overview

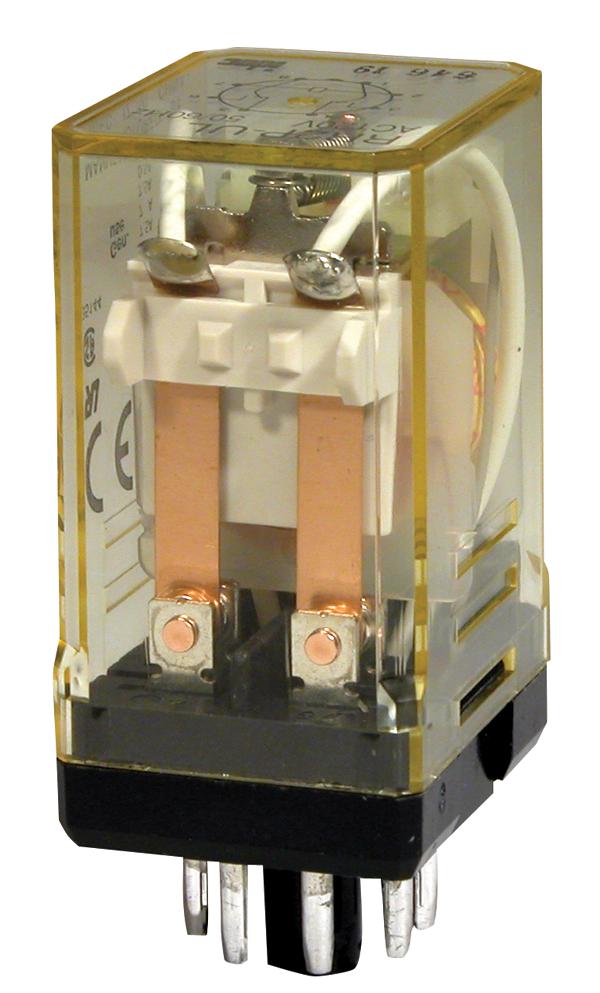

RR2P-UAC120V is a RR series power relay.
- Midget power type relay
- Silver contact material
- Contact resistance is 30mohm maximum
- 25ms maximum operating/release time
- Insulation resistance is 100Mohm minimum (500V DC megger)
- Operating temperature range from –25 to +40°C (no freezing)
- DPDT contact configuration
- 10A contact current
- 120V AC/30V DC contact voltage
- 120V AC coil voltage
Product details
| Contact Configuration |
DPDT |
| Contact Current |
10A |
| Relay Mounting |
Socket |
| Contact Voltage VAC |
120V |
| Contact Voltage VDC |
30V |
| Coil Resistance |
2.1kohm |
| Coil Voltage |
120VAC |
| Product Range |
RR Series |
| Coil Type |
Non Latching |
| Relay Terminals |
Plug In |
| Contact Material |
Silver |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
IDEC |
| Part Number |
RR2P-UAC120V |
| Quantity |
Each |
| Technical Data Sheet (153.72KB) EN |
View or download |
