Product Overview

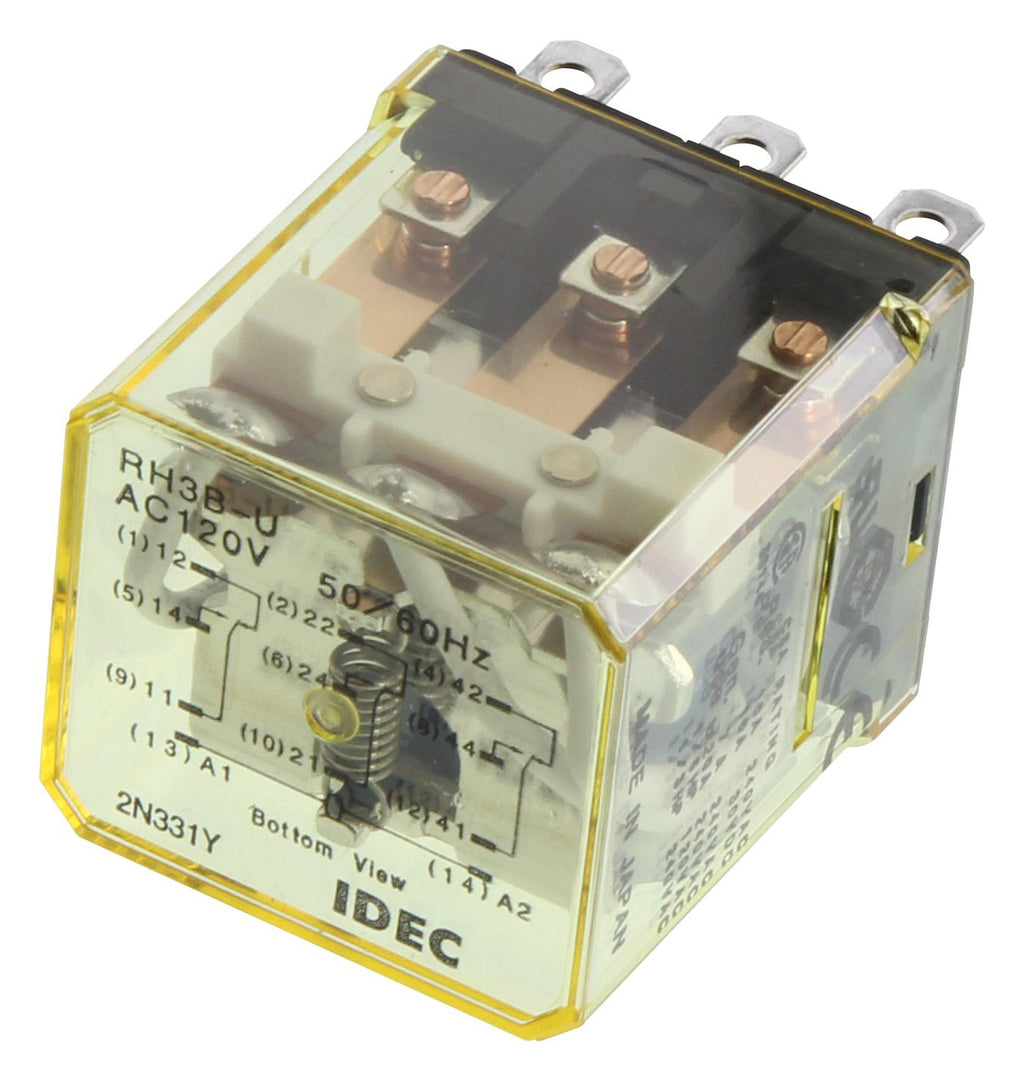

RH3B-UAC120V is a RH series compact power relay. It carries worldwide approvals, including UL, CSA, and TUV. Using a standard terminal arrangement, the RH series will plug into many competitors' sockets.
- Miniature power relay with a large capacity
- Compact size saves space
- 3PDT contact configuration
- 10A contact current
- 110V AC/30V DC contact voltage
- 120V AC coil voltage
- Operating temperature range from -25 to +70°C (no freezing)
- Insulation resistance is 100Mohm minimum (500V DC megger)
- Contact resistance is 50mohm maximum
- Silver cadmium oxide contact material
Product details
| Contact Configuration |
3PDT |
| Contact Current |
10A |
| Relay Mounting |
Socket |
| Contact Voltage VAC |
110V |
| Contact Voltage VDC |
30V |
| Coil Resistance |
10.8kohm |
| Coil Voltage |
120VAC |
| Product Range |
RH Series |
| Coil Type |
Non Latching |
| Relay Terminals |
Quick Connect |
| Contact Material |
Silver Cadmium Oxide |
| SVHC |
No SVHC (25-Jun-2025) |
