Product Overview

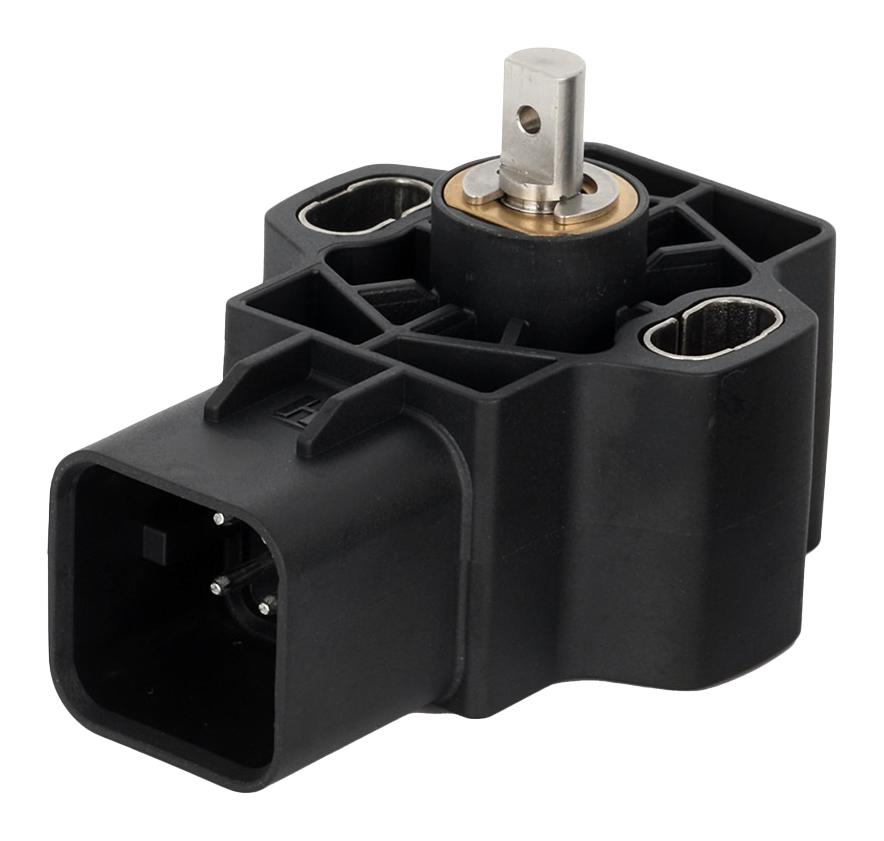

RTY180LVDDX is a RTY series, dual output hall-effect rotary position sensor. It provides non-contact sensing in harsh transportation and industrial applications at a competitive cost. The product uses a magnetically biased, hall-effect IC to sense rotary movement of the actuator over a set operating range. Rotation of the actuator changes the magnet’s position relative to the IC. The resulting flux density change is converted to a linear output. Suitable for transportation (position and movement detection (pedals, throttles, gear shift, lever, steering, linkages, hitches) in truck, buses, off-road vehicles, cranes, industrial/construction/ agricultural vehicles and equipment, suspension/kneeling position), industrial (valve control, HVAC damper control, irrigation equipment pivot control), marine (tilt/trim position (boat engines, tilling equipment), rudder position monitoring, throttler position detection and control and military applications.
- 180° (±90°) sensing range angle
- 5V DC supply voltage
- Dual signal capability
- Dual inverse slope output
- Shaft without lever actuator type
- 35M cycle product life and operating temperature range from -40°C to 125°C
- Rugged IP67 and IP69K-sealed package with integral connector
- Automotive-grade EMI/EMC testing, integrated reverse polarity, short circuit protection
- Industry-standard AMPSEAL 16 - 6 position connector
- Eight operating ranges up to 360°
Product details
| Sensor Type |
Hall-Effect Rotary Position Sensor |
| Shaft Type |
D Type Flatted End |
| Electrical Angle |
180° |
| Supply Voltage |
5VDC |
| Output Signal |
0.5V to 4.5V |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Output Type |
Ratiometric |
| Contact Type |
Non-Contact |
| Linearity |
± 1% |
| Supply Current |
20mA |
| Operating Temperature Min |
-40°C |
| Product Range |
RTY Series |
Other details
| Brand |
HONEYWELL |
| Part Number |
RTY180LVDDX |
| Quantity |
Each |
| Technical Data Sheet (1.15MB) EN |
View or download |
