Product Overview

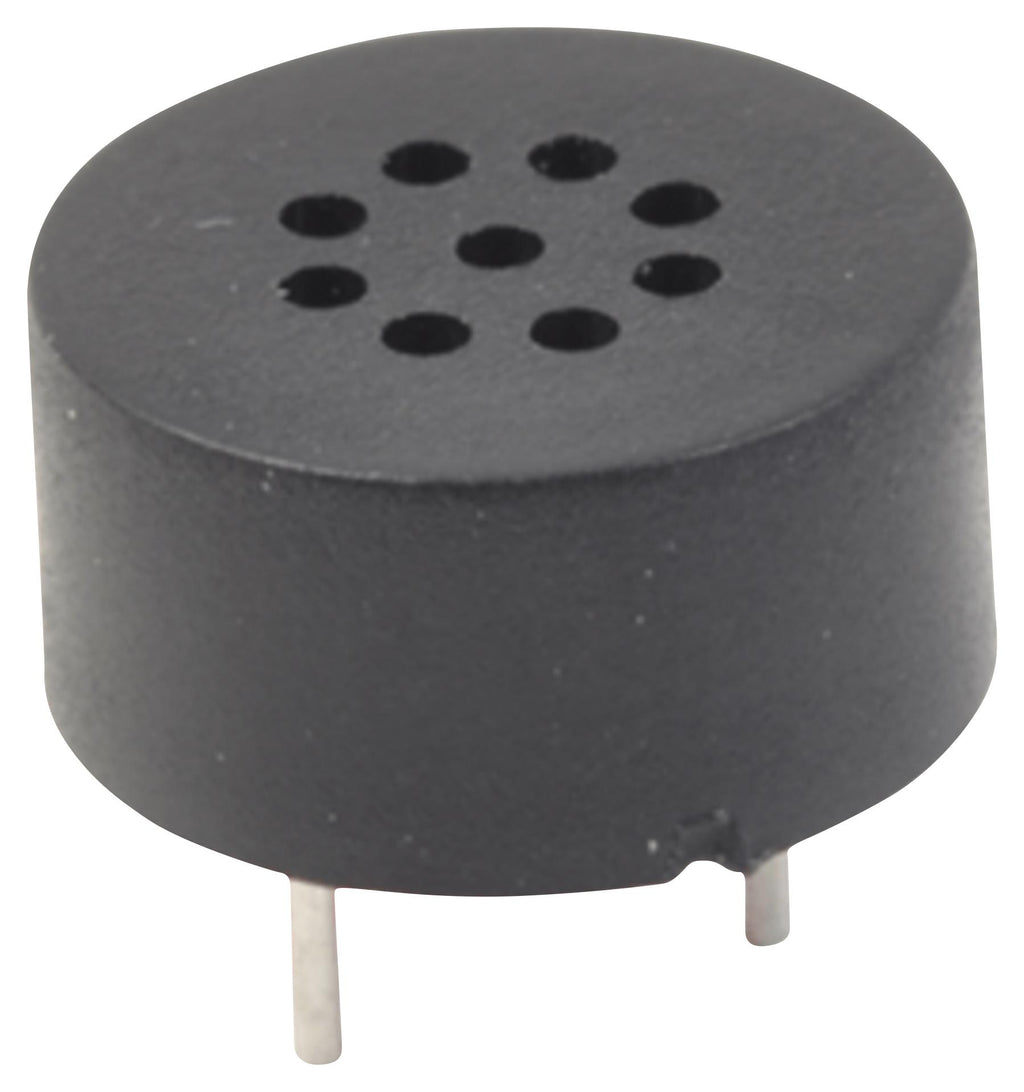

CVS-1508 is a compact 15mm round speaker designed for portable and embedded audio applications. It features a durable plastic frame, PET (polyethylene terephthalate) cone, and plastic case construction, providing reliable sound reproduction in a lightweight package.
- 8ohm nominal impedance
- 0.5W maximum input power
- 87dB sound pressure level(0.3W, 10cm average at 2.0, 2.5, 3.0, 4.0kHz)
- Resonant frequency range from 1360 to 2,040Hz at 1V
- Frequency response up to 20kHz
- ø6.5 x 1.5mm magnet size
- Operating temperature range from -20 to 55°C
Product details
| Driver Type |
Speaker |
| Power Rating Nom |
300mW |
| Sound Pressure Level (SPL) |
87dB |
| Product Dimensions |
15mm x 7.5mm |
| Temperature Grade |
- |
| Product Range |
- |
| Impedance |
8ohm |
| Resonant Frequency |
2.04kHz |
| Speaker Shape |
Round |
| Frequency Range |
20kHz |
| IP Rating |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
CVS-1508 |
| Quantity |
Each |
| Technical Data Sheet (71.00B) EN |
View or download |
