Product Overview

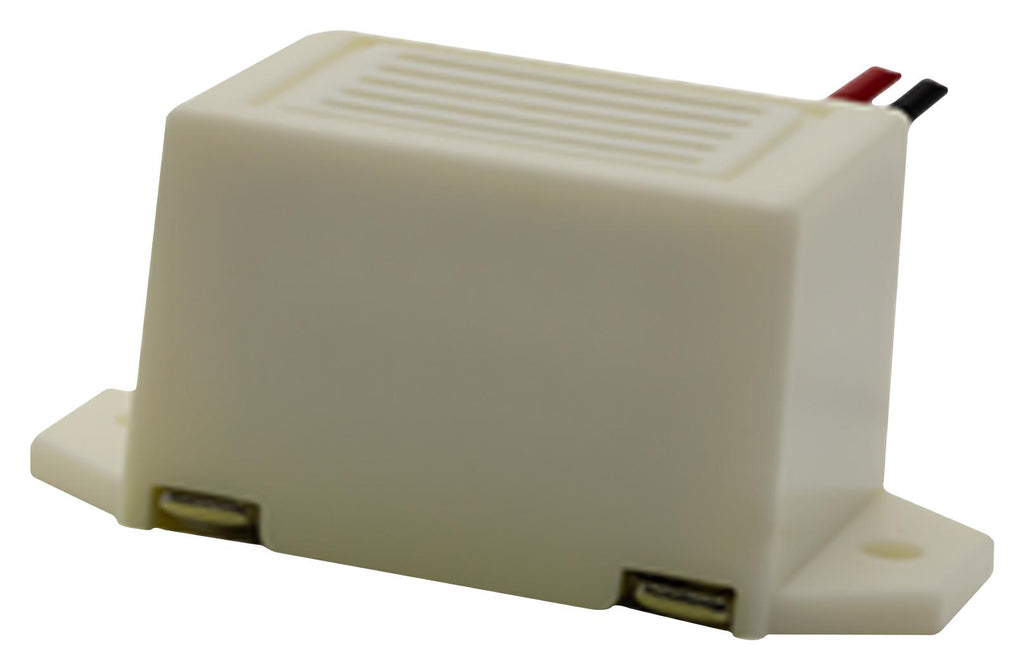

CS-3624 is a solid-state audio indicator (buzzer) with an internal driving circuit, wire leads, and mounting tabs for panel mounting.
- 24V DC rated voltage
- 35mA current consumption
- Rated frequency range 250Hz to 550Hz
- Sound pressure level of 78dBA
- Dimension is 33.5 x 17.0 x 15.3mm
- Operating temperature range from -30 to 70°C
Product details
| Transducer Function |
Audio Indicator |
| Supply Voltage Max |
28VDC |
| Sound Pressure Level (SPL) |
78dBA |
| Resonant Frequency |
- |
| Product Range |
- |
| Supply Voltage Min |
18VDC |
| Tones |
Continuous |
| Current Rating |
35mA |
| Transducer Mounting |
Panel Mount |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
CS-3624 |
| Quantity |
Each |
| Technical Data Sheet (70.00B) EN |
View or download |
