Product Overview

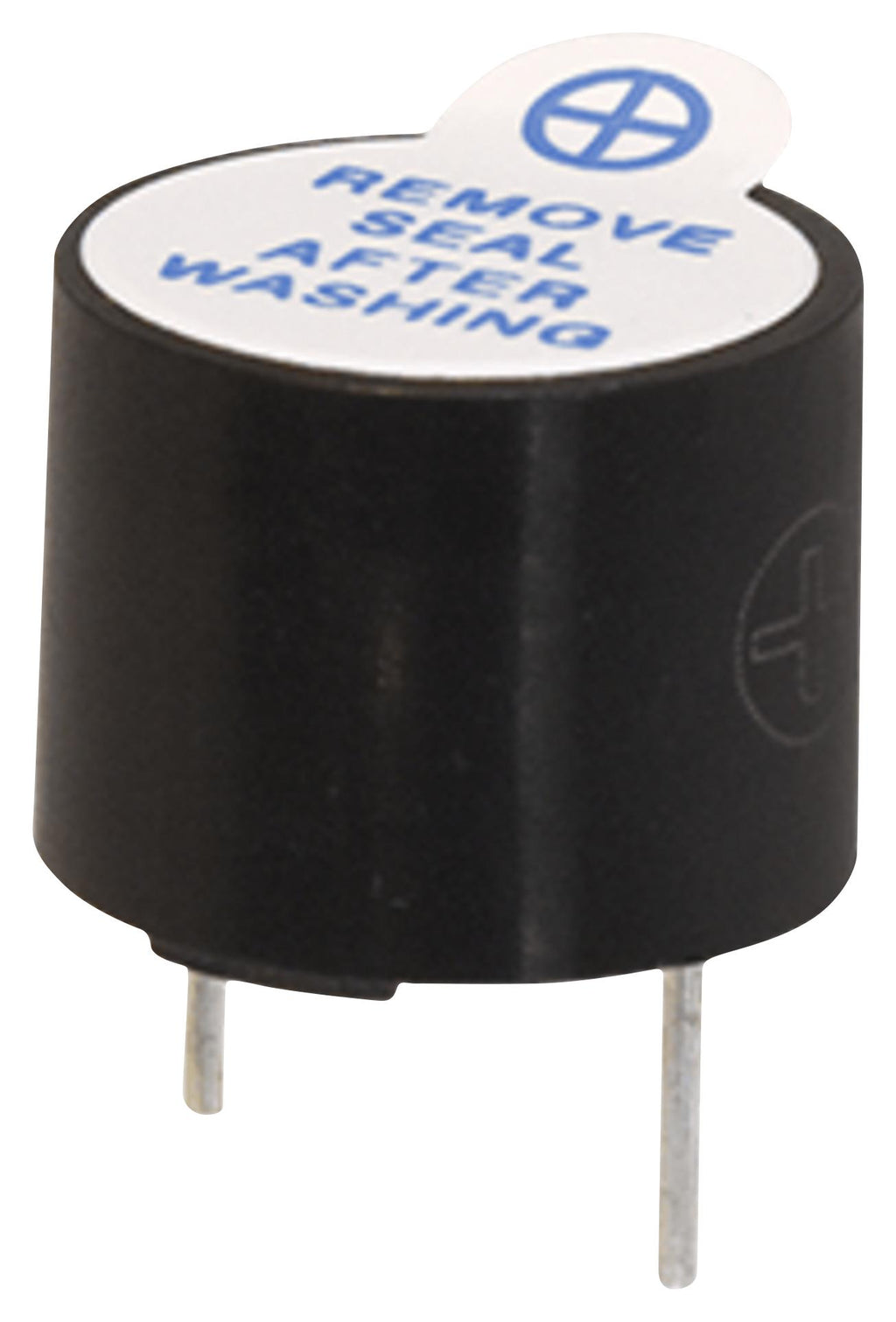

CMI-1295IC-0385T is a magnetic indicator buzzer with a built-in driving circuit that features a rated frequency of 2400 Hz at 3V DC and tight frequency tolerances of ±100Hz. This narrow frequency range gives designers added frequency stability that is not affected by temperature or voltage, while providing more consistent tones and sounds in their given application. Offering an SPL of 85 dB at 10cm, this magnetic indicator buzzer is a highly reliable solution for medical, smart home, and security applications that require tone consistency.
- 30mA current consumption
- Operating temperature range from -30 to 70°C
- Dimension is Ø12 x 9.5mm
Product details
| Tones |
1 Tone |
| Sound Pressure Level (SPL) |
85dB |
| Capacitance |
- |
| Lead Wire |
- |
| Housing Material |
PBT (Polybutylene Terephthalate) |
| Operating Temperature Min |
-30°C |
| Product Range |
- |
| Resonant Frequency |
- |
| Drive Circuit |
Internal |
| Transducer Mounting |
Through Hole |
| IP Rating |
- |
| Operating Voltage Range |
2VDC to 5VDC |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
CMI-1295IC-0385T |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
