Product Overview

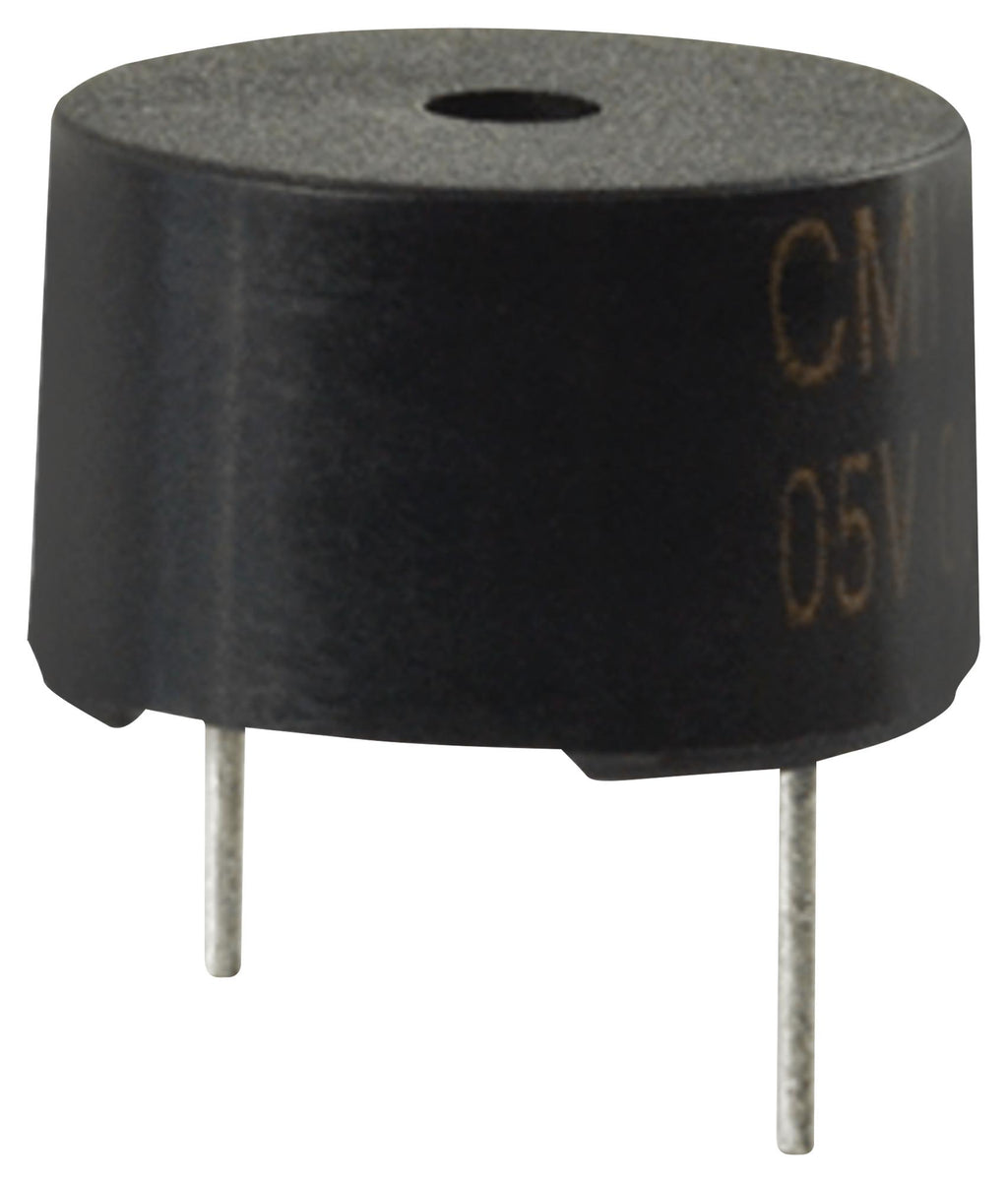

CMI-1275C-050 is a through-hole magnetic audio indicator buzzer.
- 5V DC rated voltage
- 30mA current consumption
- Rated frequency of 3100Hz
- Operating temperature range from -20 to 70°C
- Dimension is Ø12 x 7.5mm
- Sound pressure level of 90dBA and includes driving circuit
Product details
| Tones |
- |
| Sound Pressure Level (SPL) |
90dBA |
| Capacitance |
- |
| Lead Wire |
- |
| Housing Material |
PBT (Polybutylene Terephthalate), Glass |
| Operating Temperature Min |
-20°C |
| Product Range |
- |
| Resonant Frequency |
- |
| Drive Circuit |
Internal |
| Transducer Mounting |
Through Hole |
| IP Rating |
- |
| Operating Voltage Range |
3VDC to 7VDC |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
CMI-1275C-050 |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
