Product Overview

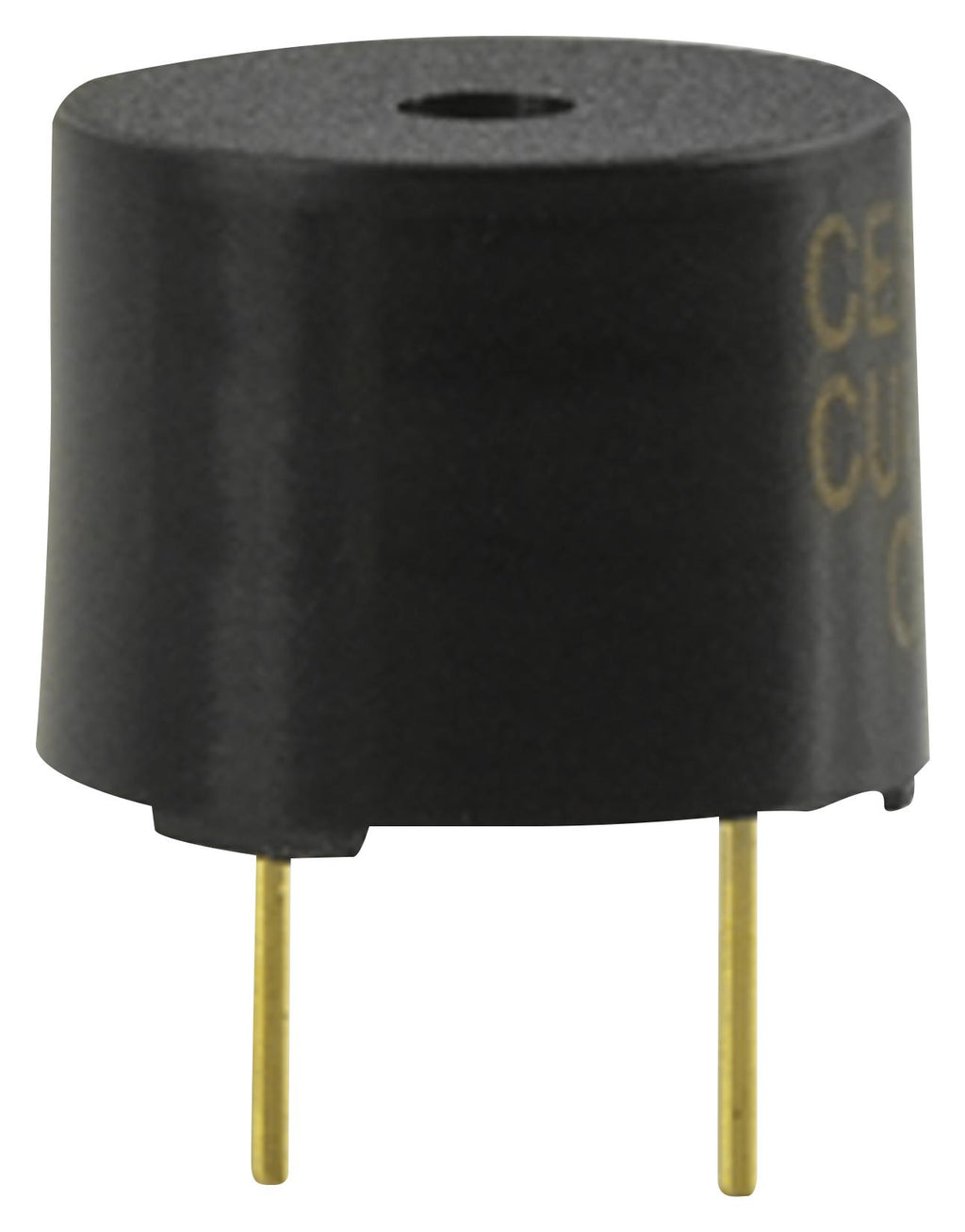

CEM-1206S is a sealed through-hole magnetic audio transducer buzzer.
- 5V DC rated voltage
- 45mA current consumption
- Rated frequency of 2400Hz
- Operating temperature range from -30 to 70°C
- Dimension is Ø12.0 x 9.5mm
- Sound pressure level of 92dBA and externally driven
Product details
| Tones |
- |
| Sound Pressure Level (SPL) |
92dBA |
| Capacitance |
- |
| Lead Wire |
- |
| Housing Material |
PBT (Polybutylene Terephthalate) |
| Operating Temperature Min |
-30°C |
| Product Range |
- |
| Resonant Frequency |
- |
| Drive Circuit |
External |
| Transducer Mounting |
Through Hole |
| IP Rating |
- |
| Operating Voltage Range |
3V o-p to 8V o-p |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
CEM-1206S |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
