Product Overview

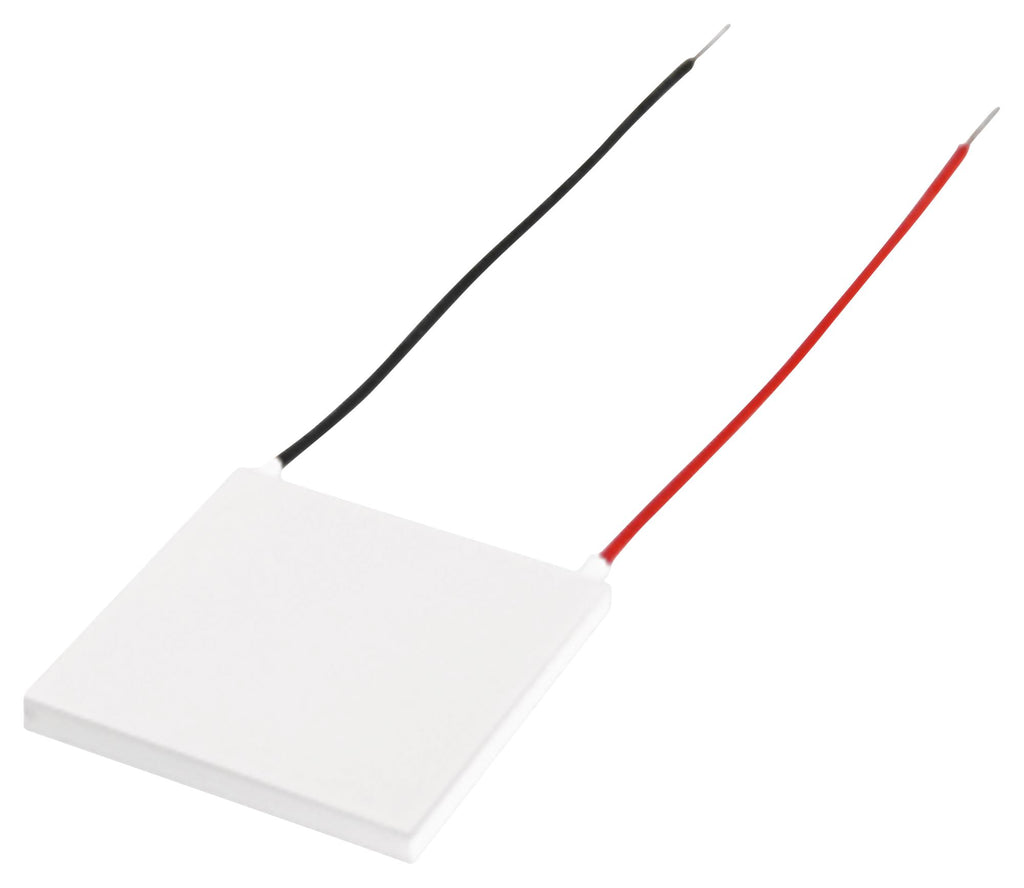

SAME SKY CP85438 Thermoelectric Cooler Module, 1.5 ohm, 15.4 VDC, 8.5 A, 75 W, 1 Stage, 20 AWG Red & Black
Product details
| Module Type |
Thermoelectric Cooler |
| Cooling Power Pc |
75W |
| Voltage Max @ Diff Temperature Max |
15.4VDC |
| Width |
40mm |
| Temperature Difference Max |
68°C |
| Internal Resistance |
1.5ohm |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Stages |
1 Stage |
| Current Max @ Diff Temperature Max |
8.5A |
| Length |
40mm |
| Depth |
3.74mm |
| Product Range |
arcTEC CP85 Series |
| Lead Wires |
20 AWG Red & Black |
Other details
| Brand |
SAME SKY |
| Part Number |
CP85438 |
| Quantity |
Each |
| Technical Data Sheet (67.00B) EN |
View or download |
