Product Overview

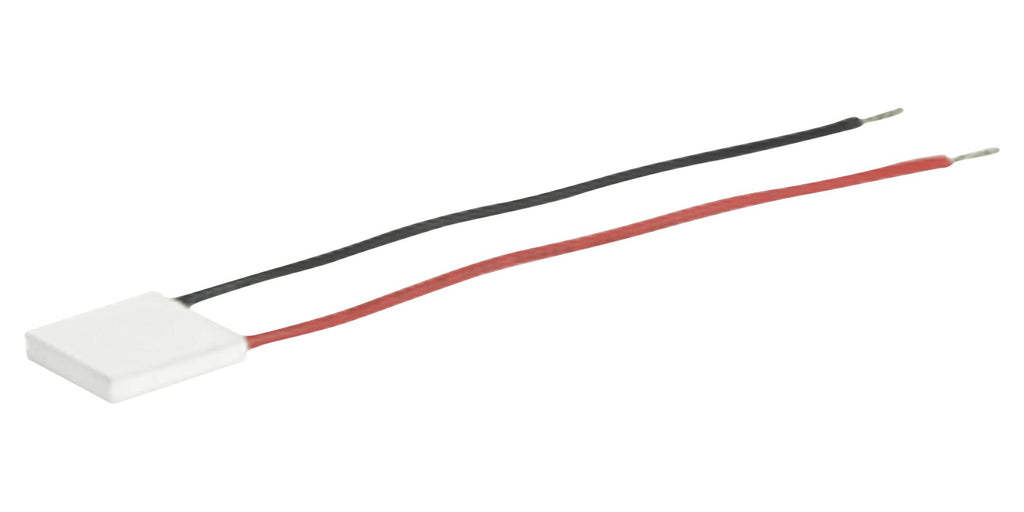

SAME SKY CP60302031H Thermoelectric Cooler Module, 1.51 ohm, 13 VDC, 6 A, 49.5 W, 1 Stage, 22 AWG Red & Black
Product details
| Module Type |
Thermoelectric Cooler |
| Cooling Power Pc |
49.5W |
| Voltage Max @ Diff Temperature Max |
13VDC |
| Width |
20mm |
| Temperature Difference Max |
68°C |
| Internal Resistance |
1.51ohm |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Stages |
1 Stage |
| Current Max @ Diff Temperature Max |
6A |
| Length |
30mm |
| Depth |
3.1mm |
| Product Range |
arcTEC CP60H Series |
| Lead Wires |
22 AWG Red & Black |
Other details
| Brand |
SAME SKY |
| Part Number |
CP60302031H |
| Quantity |
Each |
| Technical Data Sheet (68.00B) EN |
View or download |
