Product Overview

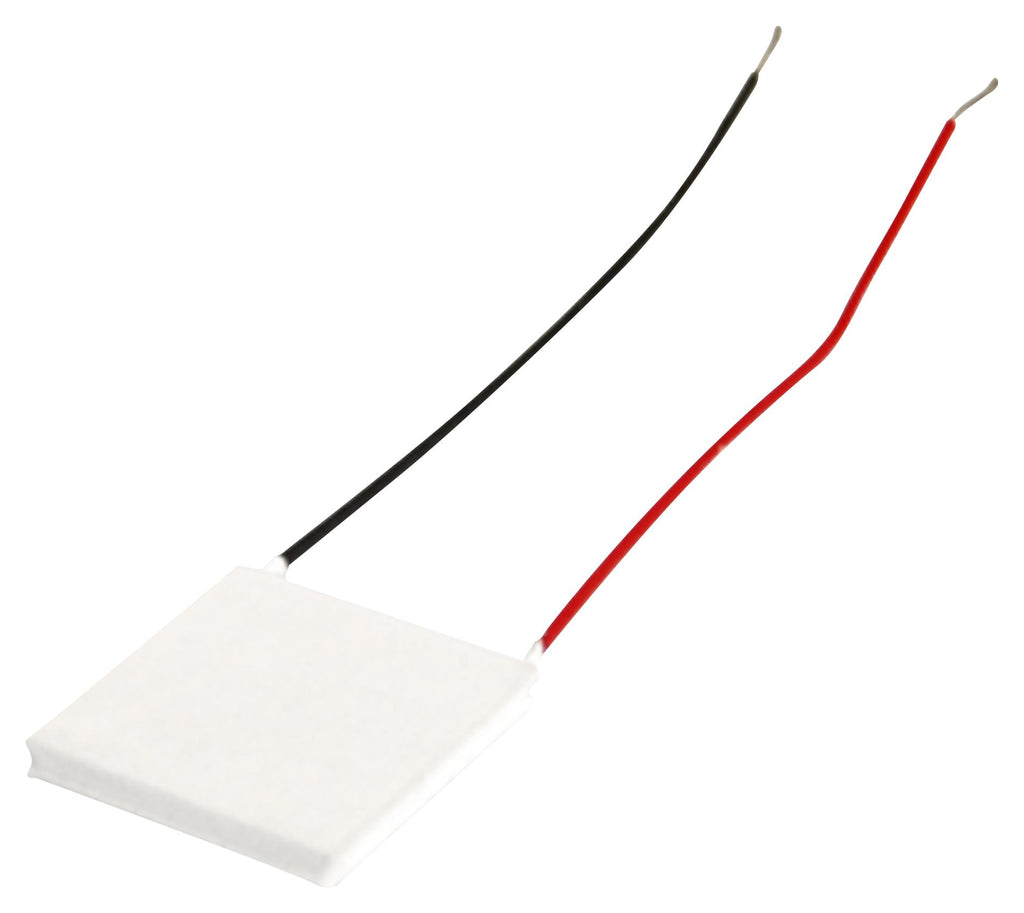

SAME SKY CP40236 Thermoelectric Cooler Module, 2 ohm, 8.6 VDC, 4 A, 18.7 W, 1 Stage, 20 AWG Red & Black
Product details
| Module Type |
Thermoelectric Cooler |
| Cooling Power Pc |
18.7W |
| Voltage Max @ Diff Temperature Max |
8.6VDC |
| Width |
20mm |
| Temperature Difference Max |
66°C |
| Internal Resistance |
2ohm |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Stages |
1 Stage |
| Current Max @ Diff Temperature Max |
4A |
| Length |
20mm |
| Depth |
3.6mm |
| Product Range |
arcTEC CP40 Series |
| Lead Wires |
20 AWG Red & Black |
Other details
| Brand |
SAME SKY |
| Part Number |
CP40236 |
| Quantity |
Each |
| Technical Data Sheet (67.00B) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
