Product Overview
DS04-254-1-05BK-SMT is a DS04-254-SMT series DIP switch.
- Surface mount, 2.54mm pitch
- Raised actuator
- Maximum rated voltage (per pole) is 24V DC switching, 50V DC non-switching
- Maximum rated current (per pole) is 25mA switching, 100mA non-switching
- Withstanding voltage is 500V AC typ at for 1 minute
- Initial contact resistance is 50mohm maximum
- Insulation resistance is 100Mohm minimum at 500V DC
- Operating temperature range from -40 to 85°C
Product details
| No. of Circuits |
5Circuits |
| Switch Mounting |
Surface Mount |
| Contact Voltage DC Max |
24V |
| Product Range |
DS04-254-SMT Series |
| SVHC |
No SVHC (25-Jun-2025) |
| Switch Actuator Style |
Raised Slide |
| Contact Configuration |
SPST |
| Contact Current DC Max |
25mA |
| Switch Type |
DIP Sealed |
Other details
| Brand |
SAME SKY |
| Part Number |
DS04-254-1-05BK-SMT |
| Quantity |
Each |
| Technical Data Sheet (75.00B) EN |
View or download |

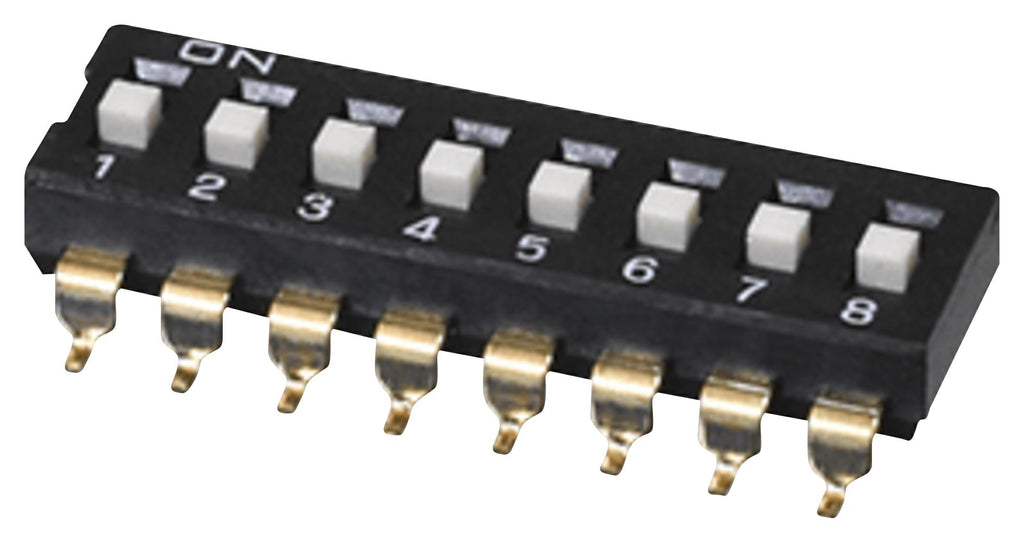

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
