Product Overview

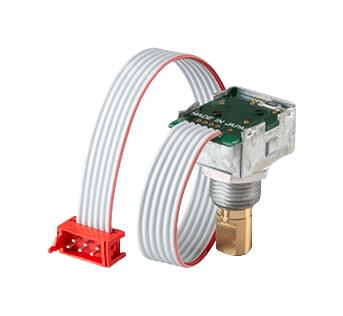

SAME SKY C14D16P-B3 Rotary Encoder, Optical, Incremental, 4 PPR, 16 Detents, Vertical, With Push Switch
Product details
| Encoder Technology |
Optical |
| Encoder Resolution |
4PPR |
| Orientation |
Vertical |
| Encoder Output |
Quadrature |
| Product Range |
C14 Series |
| Rotational Life Cycles |
1000000 |
| Shaft Type |
D Type Flatted End |
| Shaft Diameter |
6.35mm |
| Supply Voltage Max |
5.25VDC |
| Operating Temperature Max |
70°C |
| Termination |
Cable |
| Encoder Type |
Incremental |
| No. of Detents |
16 Detents |
| Push Switch |
With Push Switch |
| Encoder Mounting |
Panel Mount |
| Rotational Speed Max |
- |
| No. of Channels |
2Channels |
| Shaft Length |
17.5mm |
| Supply Voltage Min |
4.75VDC |
| Operating Temperature Min |
-10°C |
| IP Rating |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
C14D16P-B3 |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
