Product Overview

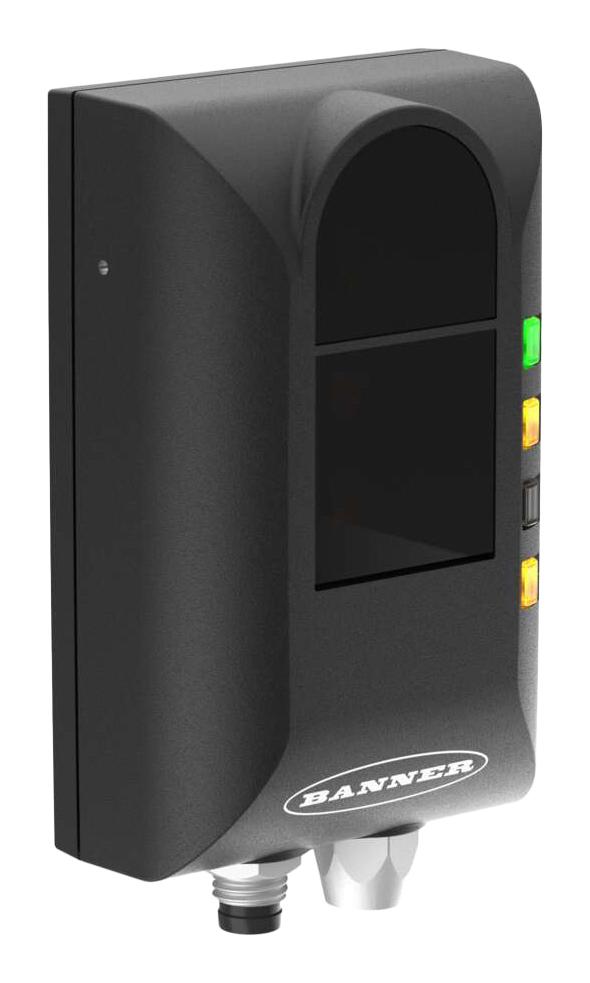

ZMX-3DE2500HF-Q8-HAWKEYE is a ZMX series 3D time of flight sensor. The 3D time of flight technology detects peak fill height and calculates an estimate of volume within a large field of view.
- 272 x 208 pixels resolution, 60 x 45 degrees field of view
- Fits many applications with adjustable sensing height and field of view
- Monitors the entire sensing region, not just a single point like ultrasonic or laser sensors
- Completely self-contained, no controller or PC required
- Deploy in minutes with only a few settings to define
- Configurable sensing range up to 2.5m for height monitoring
- Compact, rugged IP65 housing designed for industrial environments
- Integral 5-pin M12 connection
Product details
| Sensor Type |
Time-of-Flight Sensor |
| Sensing Method |
Time of Flight |
| Product Range |
ZMX Series |
| Supply Voltage Min |
12VDC |
| Light Source |
850nm Infrared Laser |
| IP Rating |
IP65 |
| Operating Temperature Max |
40°C |
| Sensing Distance Max |
2.5m |
| Output Type |
Digital - NPN / PNP |
| Connection Method |
5 Pin M12 Connector |
| Supply Voltage Max |
30VDC |
| Qualification |
- |
| Operating Temperature Min |
-10°C |
| SVHC |
No SVHC (15-Jan-2018) |
Other details
| Brand |
BANNER ENGINEERING |
| Part Number |
ZMX-3DE2500HF-Q8 |
| Quantity |
Each |
| Technical Data Sheet (82.00B) EN |
View or download |
