Product Overview

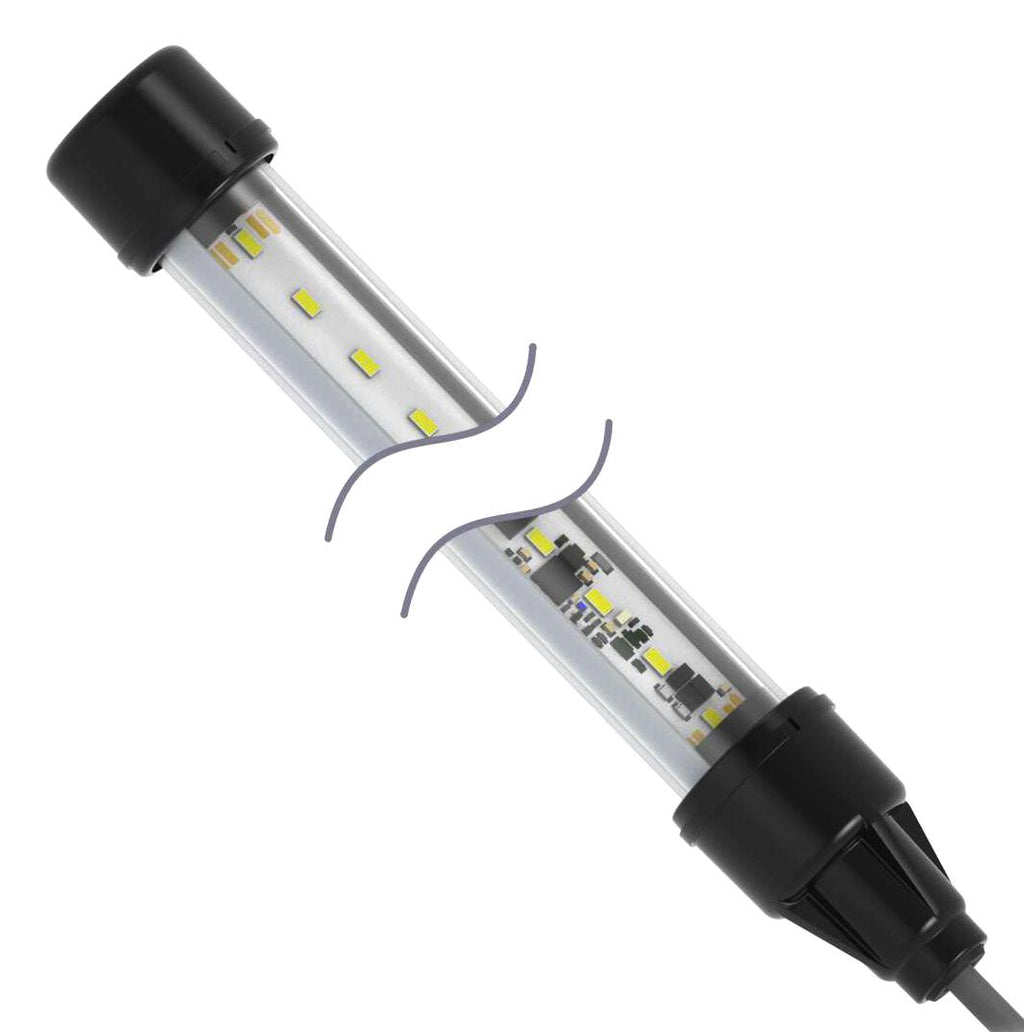

HLS27DW0710C is a HLS27 hazardous location LED strip light. It has sturdy aluminium housing and is encased in a shatterproof, UV-stabilized, polycarbonate shell, making it ideal for harsh indoor and outdoor applications.
- Low-profile, space-saving design for use in hazardous locations
- Rugged, water-resistant IP66, IP67 design
- 710mm lighted length, Cool white LED, clear window
- Capability to dim lights using the wiring pinout (Hi/Lo/Off)
- Automatic temperature protection built into the unit—above 50°C
- Certification for cULus and ATEX/UKCA/IECEx
- 2m (6.5ft) ITC-ER 3-wire cable
- Supply voltage range from 12-30V DC
Product details
| Length |
710mm |
| Light Source |
Cool White |
| Supply Voltage |
30VDC |
| Product Range |
HLS27 Series |
| SVHC |
No SVHC (15-Jan-2018) |
| Lamp Base Type |
- |
| Lens Diameter |
- |
| Power Rating |
- |
| Plug Type |
- |
Other details
| Brand |
BANNER ENGINEERING |
| Part Number |
HLS27DW0710C |
| Quantity |
Each |
| Technical Data Sheet (82.00B) EN |
View or download |
