Product Overview

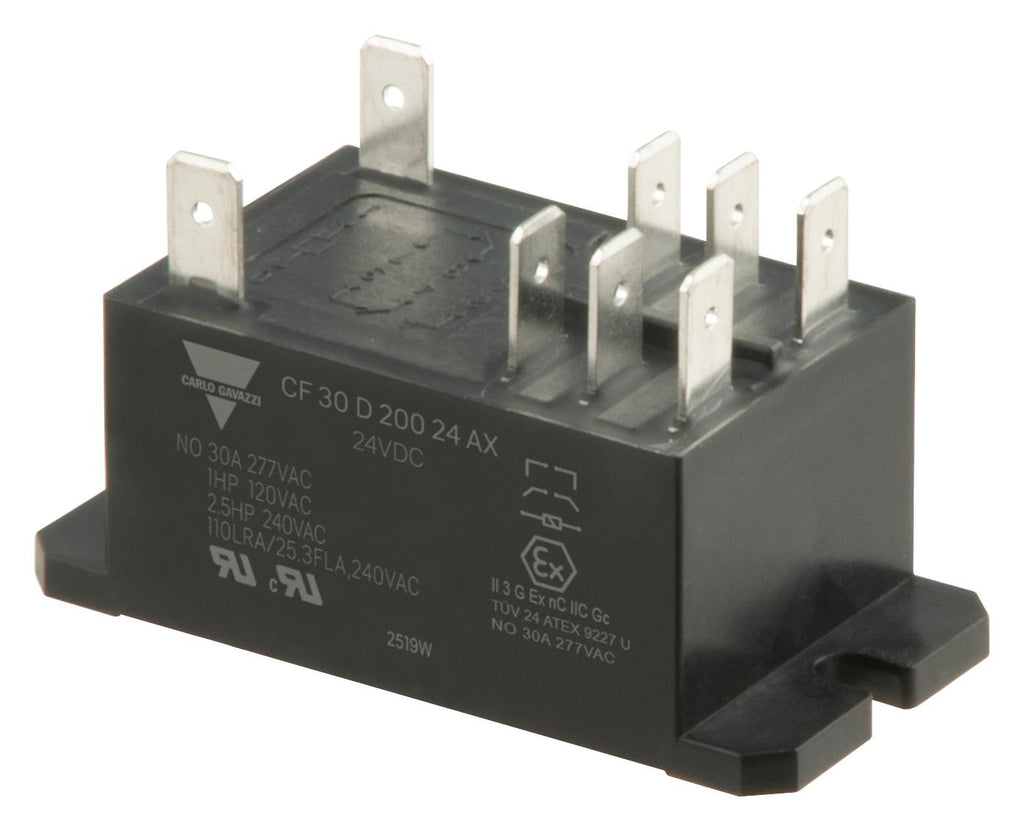

CF30A002240AX is a CF30 series high output power relay. It is sealed and designed for power loads, compressor control, vending machines and hazardous applications.
- PCB mounting
- Switches 30A power loads for compressor control and use in explosive or flammable environments
- Wide voltage coil range 24 to 277V AC (AC coils)
- 2 change over contact (DPDT)
- 240V AC rated coil voltage (AC coil)
- Standard sealing, reinforced 4kV/8mm insulation, class F design ensure high robustness & reliability
- ATEX and NWFR hazard of explosive atmospheres and flammable refrigerants approvals
Product details
| Contact Configuration |
DPDT |
| Contact Current |
30A |
| Relay Mounting |
Panel Mount |
| Contact Voltage VAC |
277V |
| Contact Voltage VDC |
- |
| Coil Resistance |
3.8kohm |
| Coil Voltage |
240VAC |
| Product Range |
CF30 Series |
| Coil Type |
Non Latching |
| Relay Terminals |
Quick Connect |
| Contact Material |
Silver Tin Oxide |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
CARLO GAVAZZI |
| Part Number |
CF30A002240AX |
| Quantity |
Each |
| Technical Data Sheet (820.53KB) EN |
View or download |
