Product Overview

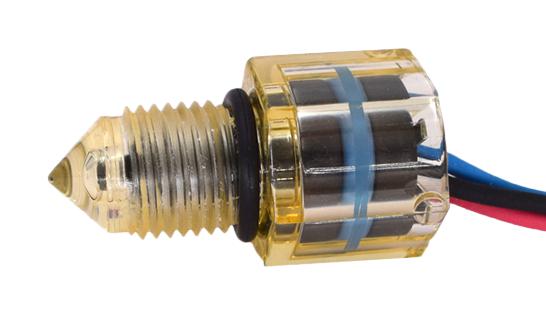

224511 is an ELS-950 series rugged electro-optic level sensor. It is developed to monitor a broad range of media, including OHV-type fluids. The UL-approved design features a TPE over-moulded electronics insert, TPE insulated wires, and fluorocarbon O-ring seals that create a watertight, environmentally resistant assembly, ideally suited for use in harsh environments, offering excellent temperature and pressure capabilities. The ELS-950 is excellent for industrial OEMs requiring a solid-state sensor for a small space and high-temperature environment. Typical applications include coolant reservoir monitoring and warning, medical diagnostic, sterilizer, washers and dialysis equipment, low lubricant warning on machine tools, generator sets, on- or off-highway vehicles, low-level warning in hydraulic reservoirs, plastic overflow bottles, plastic radiators, and leak detection for drip pans.
- M12×1 – 8g mounting type, 6" lead wire length
- Dry actuation condition
- 12V DC ±10% input power
- Polysulfone housing/prism, fluorocarbon O-ring material
- Operating pressure range from 0 to 250psi (0 to 17bar)
- Operating temperature range from -40°F to +230°F (-40°C to 110°C)
- Sink 40mA max, up to 30V DC output
- UL file No. E108913, IP66/67 rating approved
- 10mA current consumption (no load)
- Repeatability is ±1mm
Product details
| Media Type |
Fluid |
| Operating Pressure Max |
250psi |
| Switch Output |
- |
| Supply Voltage Min |
- |
| Operating Temperature Min |
-40°C |
| Product Range |
ELS-950 Series |
| Process Connection Type |
M12 Connector |
| Housing Material |
Polysulfone |
| Electrical Connection |
150mm Cable |
| Supply Voltage Max |
12VDC |
| Operating Temperature Max |
110°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
GEMS SENSORS |
| Part Number |
224511 |
| Quantity |
Each |
| Technical Data Sheet (225.96KB) EN |
View or download |
