GEMS SENSORS 226551 Level Switch, Fluid, M12 Connector, 250 psi, Polysulfone

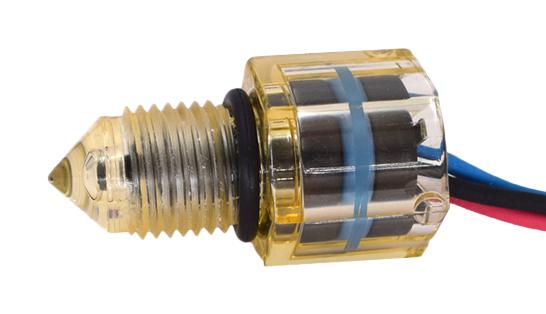

226551 is an ELS-950 series rugged electro-optic level sensor. It is developed to monitor a broad range of media, including OHV-type fluids. The UL-approved design features a TPE over-moulded electronics insert, TPE insulated wires, and fluorocarbon O-ring seals that create a watertight, environmentally resistant assembly, ideally suited for use in harsh environments, offering excellent temperature and pressure capabilities. The ELS-950 is excellent for industrial OEMs requiring a solid-state sensor for a small space and high-temperature environment. Typical applications include coolant reservoir monitoring and warning, medical diagnostic, sterilizer, washers and dialysis equipment, low lubricant warning on machine tools, generator sets, on- or off-highway vehicles, low-level warning in hydraulic reservoirs, plastic overflow bottles, plastic radiators, and leak detection for drip pans.

• M12×1 – 8g mounting type, 2m lead wire length
• Wet actuation condition
• 12V DC ±10% input power
• Polysulfone housing/prism, fluorocarbon O-ring material
• Operating pressure range from 0 to 250psi (0 to 17bar)
• Operating temperature range from -40°F to +230°F (-40°C to 110°C)
• Sink 40mA max, up to 30V DC output
• UL file No. E108913, IP66/67 rating approved
• 10mA current consumption (no load)
• Repeatability is ±1mm
