Product Overview

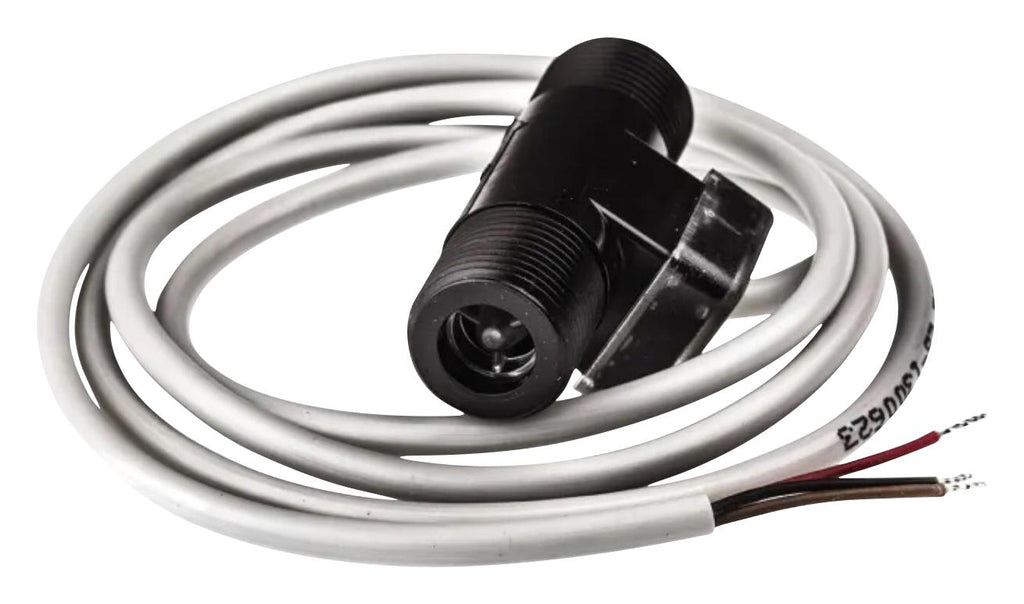

173931-C is a FT-110 series TurboFlow® Flow-rate sensor ideal for OEM applications involving low flow liquid monitoring. It is coupled with 1/2% repeatability makes it an ideal candidate for replacing dispensing timer systems. Unlike existing timing systems, turbine technology is not influenced by changes in system pressure caused by aging filters. This sensor has standard power and output specifications make it easy to retrofit to existing controllers.
- Measures low liquid flow rate range from 0.13 to 1.3GPM
- 26200 pulses per gallon
- 3/8˝ NPT cable connector
- Made of nylon 12 body, nylon 12 composite turbine and PTFE/15% graphite bearings
- Operating temperature range from -4°F to 212°F (-20°C to 100°C)
- Input power range from 5 to 24V DC at 8mA
- Low cost plus high accuracy ±3% of reading
- Lightweight plastic design enables mounting in any position
- Operating temperature range from -20°C to 100°C
Product details
| Sensor Type |
Turbine Flow Sensor |
| Flow Rate Max |
5l/min |
| Operating Pressure Max |
13.7bar |
| Supply Voltage Max |
24VDC |
| Sensor Output Type |
NPN Open Collector |
| Process Connection Size |
3/8" |
| Pipe Size |
- |
| Operating Temperature Min |
-20°C |
| Product Range |
TurboFlow FT-110 Series |
| Flow Rate Min |
0.5l/min |
| Operating Pressure Min |
- |
| Supply Voltage Min |
5VDC |
| Accuracy |
± 3% |
| Media Type |
Liquid |
| Process Connection Type |
NPT Male |
| Sensor Mounting |
- |
| Operating Temperature Max |
100°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
GEMS SENSORS |
| Part Number |
173931-C |
| Quantity |
Each |
| Technical Data Sheet (1.01MB) EN |
View or download |
