Description
Product Overview

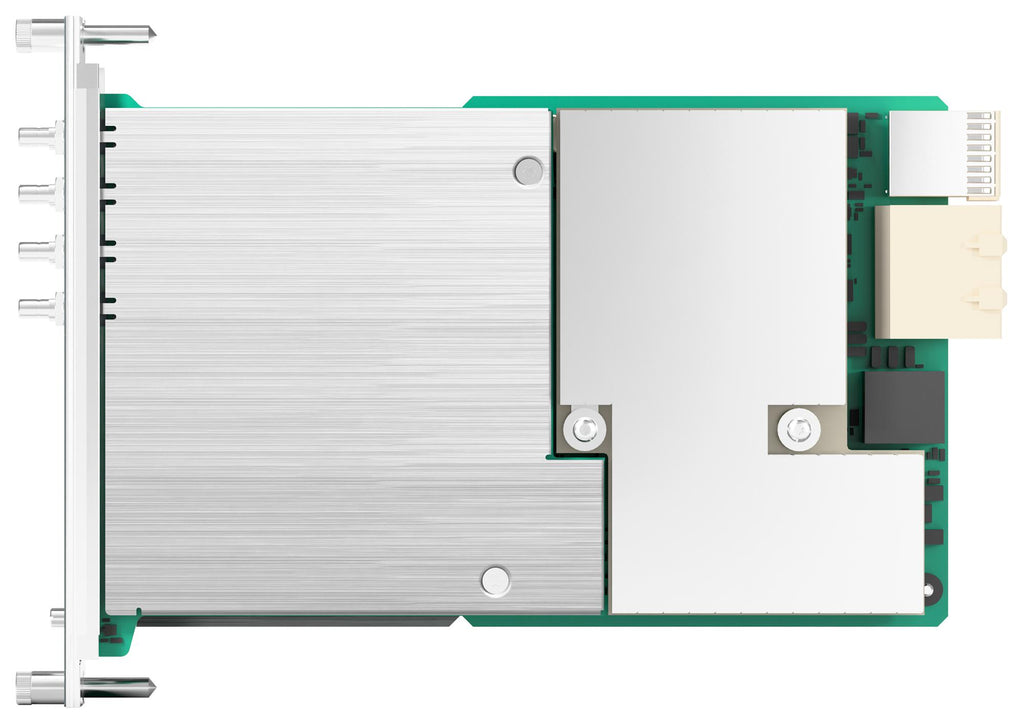

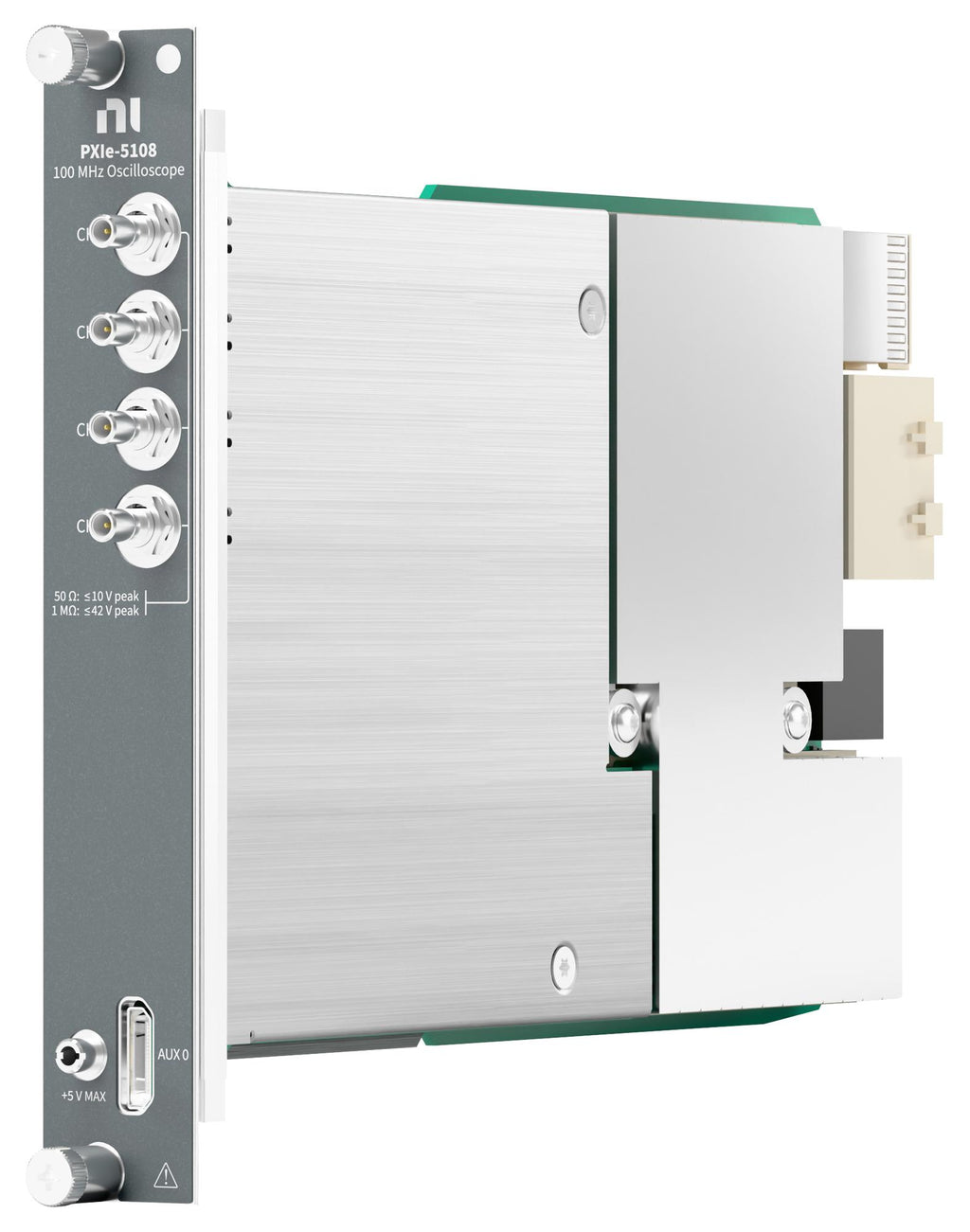

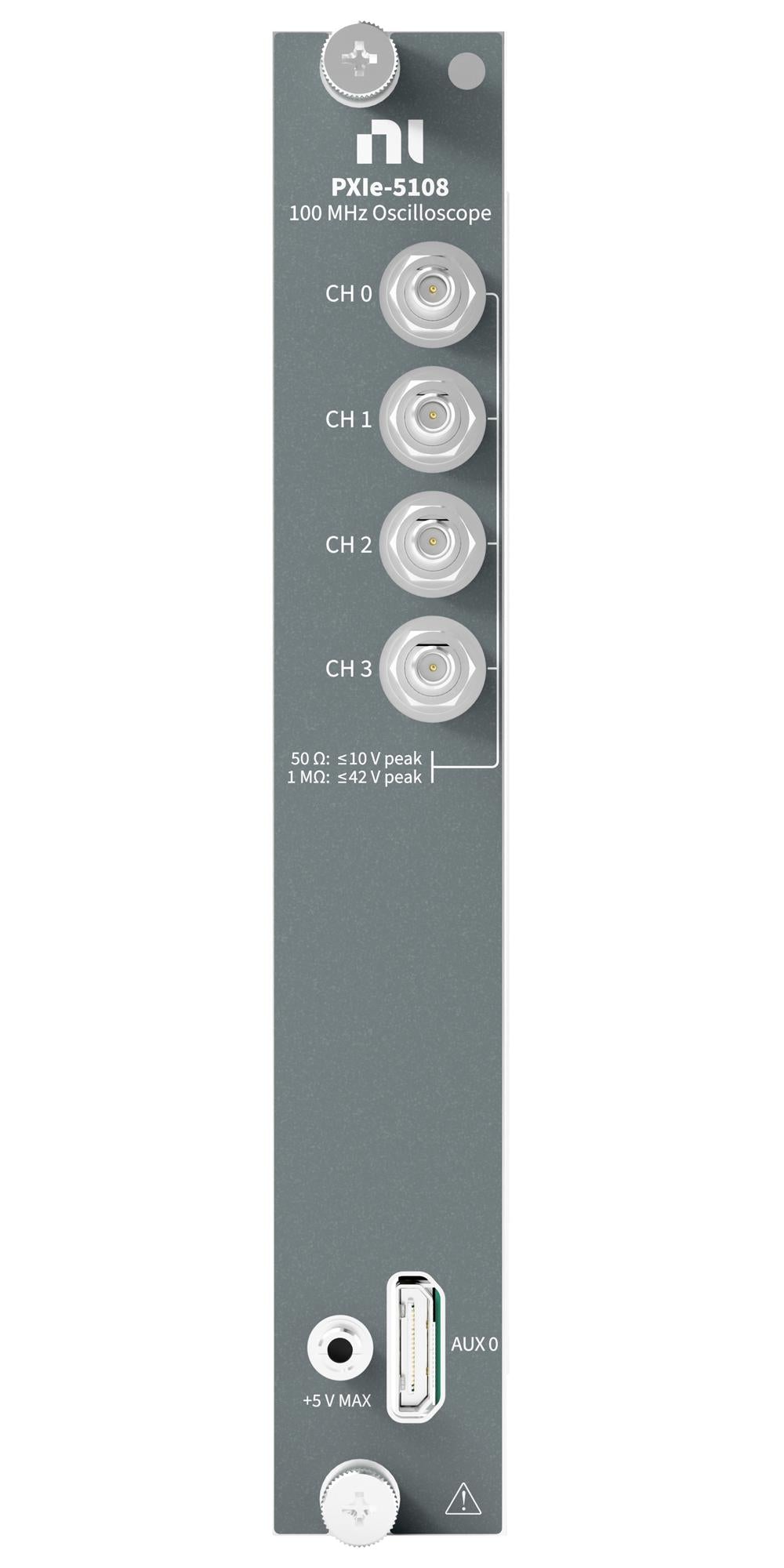

790584-01 is a PXIe-5108 100MHz, 4-channel, 14bit, PXI oscilloscope. The PXIe-5108 oscilloscope supports high-channel-count signal acquisition for precise and flexible measurement applications. The PXIe-5108 provides four simultaneously sampled channels, each with configurable coupling and voltage ranges to meet a wide range of test requirements. The PXIe-5108 offers multiple triggering options, substantial onboard memory for extended data capture, and a comprehensive instrument driver that helps streamline data streaming and analysis. The PXIe-5108 supports multichannel measurements with sampling rates up to 250MS/s and analogue bandwidth up to 100MHz. The PXIe-5108 also provides advanced synchronization capabilities within PXI systems for coordinated measurements across instruments.
- Analog input voltage range from -40V to 40V
- 20.25W typical total power
- 3U, one-slot, PXI Express Gen 2 x8 module
- Dimension is 18.5cm × 2.0cm × 13.0cm (7.3" × 0.8" × 5.1")
Notes
1 year warranty.
Product details
| Product Range | PXIe-5108 |
| Bandwidth | 100MHz |
| Display Memory Depth | - |
| Kit Contents | PXIe-5108 PXI Oscilloscope |
| Plug Type | - |
| Scope Channels | 4 Analogue |
| Sampling Rate | 250MSPS |
| Calculated Rise Time | 5.25ns |
| Manufacturer Warranty | 1 Year |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | NI / EMERSON |
| Part Number | 790584-01 |
| Quantity | Each |
| Technical Data Sheet (402.06KB) EN | View or download |
