Product Overview

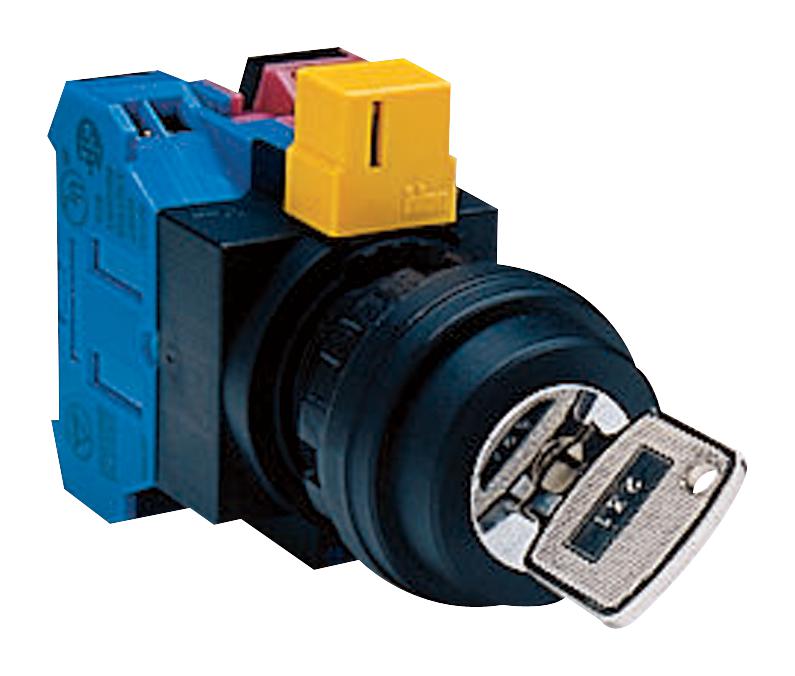

HW1K-3AF20 is a HW series 22mm IEC style global pushbutton switch. It is easy to build, modify and maintain. This HW switch mounts into any 22mm round mounting hole. This HW switch allows users to mount up to six contacts and wire contact blocks separately for easy installation. A safety, yellow lever lock assures the contacts stay on the switch. It is best engineered switch in the world for a reason. It carries the UL, CSA, CCC (Chinese), and TUV approvals. This switch is designed for use in almost any part of the world. It also incorporates mechanically keyed safety locking levers, ensuring correct installation and maintaining safety in high-vibration applications.
- Locking lever removable contact blocks
- Finger-safe IP20 contacts, tamperproof construction
- All E-stops meet EN60947-5-5, and are compliant with SEMI S2 standards
- Worldwide approvals, easy to assemble, slow make double break contacts
- 600V rated insulation voltage
- 5mA at 3V AC/DC minimum switching capacity
- Contact resistance is initial contact resistance of 50mohm, or less
- Silver contact material
- Operating temperature range from -25 to +60°C (illuminated -25 to +50°C dome -25 to +55°C)
- Plastic bezel, maintained (standard cam) operator
Product details
| Switch Operation |
Maintained |
| Product Range |
HW Series |
| Switch Terminals |
Screw |
| Contact Voltage AC Nom |
600V |
| Angle of Throw |
- |
| Contact Configuration |
DPST-NO |
| No. of Switch Positions |
3 Position |
| Contact Current Max |
10A |
| Contact Voltage DC Nom |
220V |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
IDEC |
| Part Number |
HW1K-3AF20 |
| Quantity |
Each |
| Technical Data Sheet (11.19MB) EN |
View or download |
