Product Overview

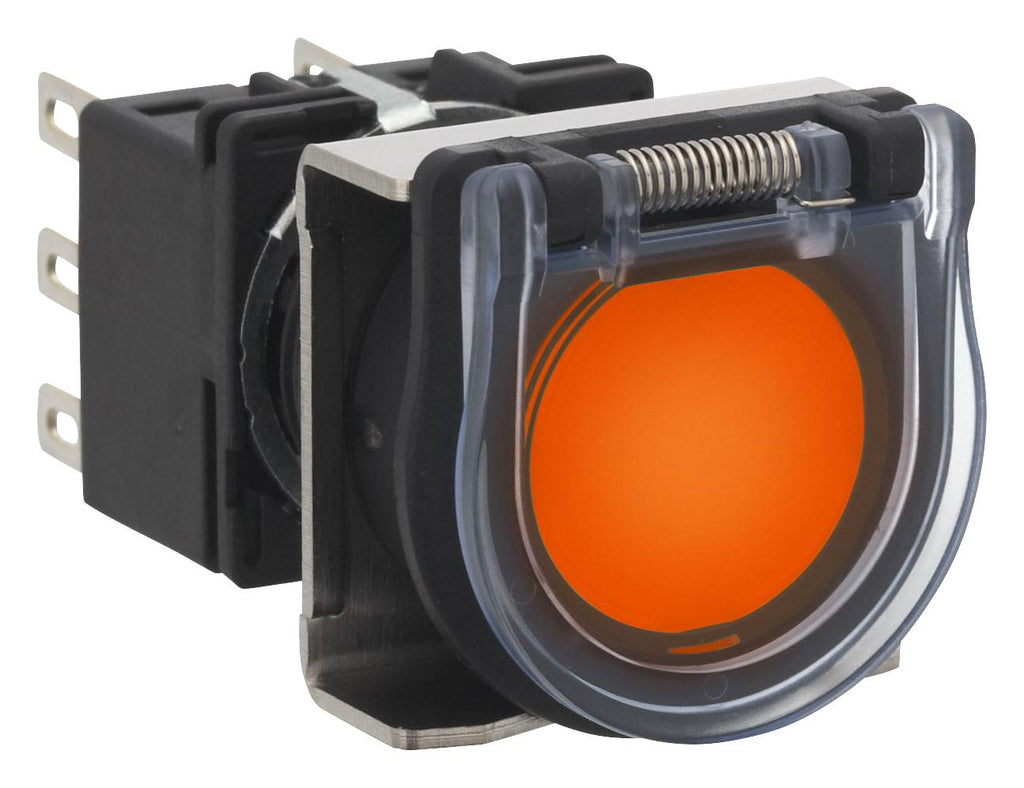

LB6GL-M1T64A is a LB series flush Silhouette switch for a sleek and refined style. It can be used for a wide range of applications.
- Projects only 2mm from the panel surface
- Slim 2mm-thick bezels for stylish panels
- Removable contacts enable easy wiring / single board mounting for space-saving installation
- Contact resistance is 50mohm maximum (initial value)
- Insulation resistance is 100Mohm minimum (500V DC megger)
- Degree of protection is IP65 (IEC 60529)
- DPDT contact configuration
- 5A AC/3A DC contact current
- 125V AC/30V DC contact voltage
- Momentary switch operation
Product details
| Product Range |
LB Series |
| Contact Configuration |
DPDT |
| Pushbutton Actuator Style |
Round |
| Contact Current AC Max |
5A |
| Contact Current DC Max |
3A |
| IP Rating |
IP65 |
| Switch Terminals |
Quick Connect, Solder Lug |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
18.2mm |
| Switch Operation |
Momentary |
| Actuator / Cap Colour |
Amber |
| Contact Voltage VAC |
125V |
| Contact Voltage VDC |
30V |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Amber |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
IDEC |
| Part Number |
LB6GL-M1T64A |
| Quantity |
Each |
| Technical Data Sheet (4.27MB) EN |
View or download |
