Product Overview

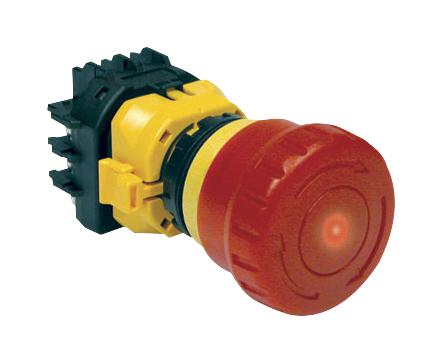

XW1E-LV422Q4M-R is an XW series emergency stop switch. The original “Safe break action” ensures that the contacts open when the contact block is detached from the operator. Applicable standards include IEC60947-5-1, EN60947-5-1, IEC60947-5-5, EN60947-5-5, JIS C8201-5-1, UL508, UL991, NFPA79, CSA C22.2 No. 14, GB14048.5.
- Direct opening action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Safety lock mechanism (IEC60947-5-5, 6.2)
- Degree of protection IP65, IP67 (IEC60529)
- Durable, gold-plated silver contact
- 50mohm maximum (initial value) contact resistance
- Insulation resistance is 100Mohm minimum (500V DC megger)
- 125V AC contact voltage
- 5A contact current
- 2.5kV impulse withstand voltage
- Panel front: IP65, IP67 (IEC 60529) degree of protection
Product details
| Contact Configuration |
DPST-NO, DPST-NC |
| Switch Terminals |
Screw |
| Contact Voltage AC Nom |
125V |
| Pushbutton Actuator Style |
Mushroom |
| Product Range |
XW Series |
| Switch Operation |
Pushlock Turn Reset/Push-Pull |
| Contact Current Max |
5A |
| Contact Voltage DC Nom |
- |
| IP Rating |
IP65, IP67 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
IDEC |
| Part Number |
XW1E-LV422Q4M-R |
| Quantity |
Each |
| Technical Data Sheet (2.94MB) EN |
View or download |
