Product Overview

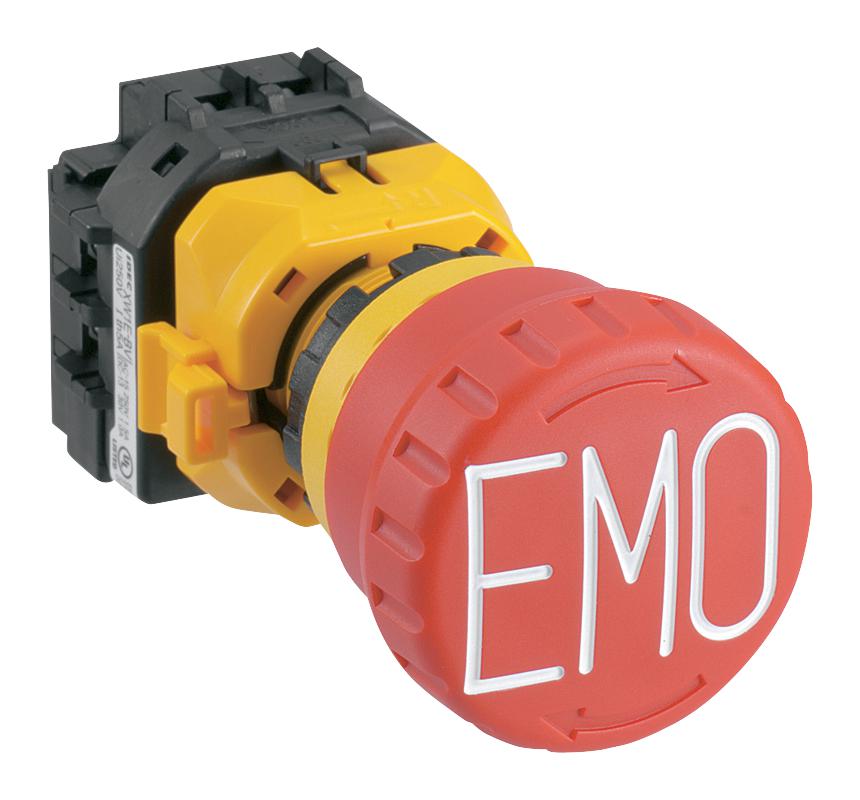

XW1E-BV411M-RH-EMO is an XW series emergency stop switch. The original “Safe break action” ensures that the contacts open when the contact block is detached from the operator. Applicable standards include IEC60947-5-1, EN60947-5-1, IEC60947-5-5, EN60947-5-5, JIS C8201-5-1, UL508, UL991, NFPA79, CSA C22.2 No. 14, GB14048.5.
- Direct opening action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Safety lock mechanism (IEC60947-5-5, 6.2)
- Degree of protection IP65, IP67 (IEC60529)
- Durable, gold-plated silver contact
- 50mohm maximum (initial value) contact resistance
- Insulation resistance is 100Mohm minimum (500V DC megger)
- 250V AC/250 DC contact voltage
- 3A contact current
- 2.5kV impulse withstand voltage
- Panel front: IP65, IP67 (IEC 60529) degree of protection
Product details
| Contact Configuration |
SPST-NO, SPST-NC |
| Switch Terminals |
Screw |
| Contact Voltage AC Nom |
250V |
| Pushbutton Actuator Style |
Mushroom |
| Product Range |
XW Series |
| Switch Operation |
Pushlock Turn Reset |
| Contact Current Max |
3A |
| Contact Voltage DC Nom |
250V |
| IP Rating |
IP65, IP67 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
IDEC |
| Part Number |
XW1E-BV411M-RH-EMO |
| Quantity |
Each |
| Technical Data Sheet (2.94MB) EN |
View or download |
