Product Overview

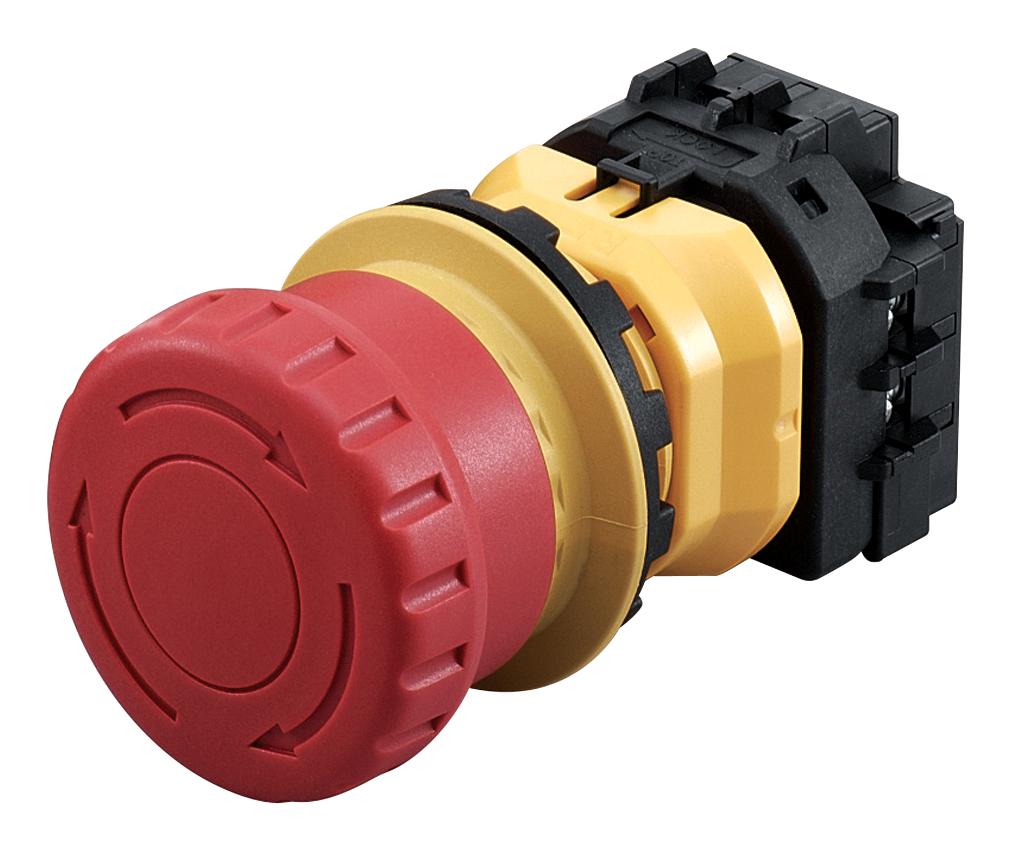

XN1E-BV422MR is an XN series emergency stop switch. The original “Safe break action” and reverse energy structure ensure the highest level of safety. Applicable standards include IEC60947-5-1, EN60947-5-1, IEC60947-5-5, EN60947-5-5, JIS C8201-5-1, UL508, UL991, NFPA79, CSA C22.2 No. 14, GB14048.5.
- Safety lock mechanism (IEC 60947-5-5, 6.2)
- Direct opening action mechanism (IEC 60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Gold plated silver contacts
- 250V AC/250V DC contact voltage
- 5A maximum contact current
- 50mohm maximum (initial value) contact resistance
- 100Mohm minimum (500V DC megger) insulation resistance
- Impulse withstand voltage is 2.5kV
- Operating frequency is 900 operations/hour
- IP65 (IEC60529) operator degree of protection
Product details
| Contact Configuration |
DPST-NO, DPST-NC |
| Switch Terminals |
Screw |
| Contact Voltage AC Nom |
250V |
| Pushbutton Actuator Style |
Mushroom |
| Product Range |
XN Series |
| Switch Operation |
On-Off |
| Contact Current Max |
5A |
| Contact Voltage DC Nom |
250V |
| IP Rating |
IP20, IP65 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
IDEC |
| Part Number |
XN1E-BV422MR |
| Quantity |
Each |
| Technical Data Sheet (2.94MB) EN |
View or download |
