Product Overview

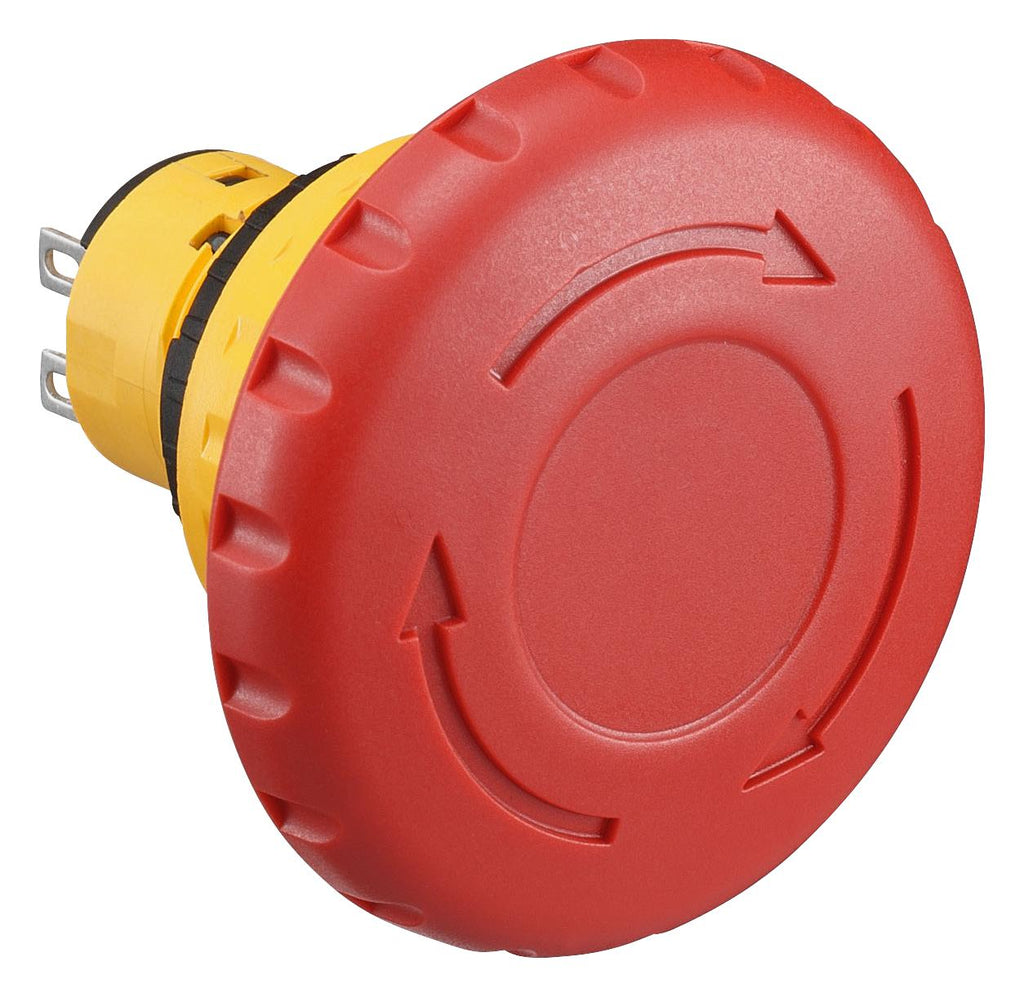

XA1E-BV4U02T-R is an XA series emergency stop switch. This small, unibody emergency stop switch is suitable for equipment with a small mounting space. Applicable Standards include IEC 60947-5-1, EN 60947-5-1, IEC 60947-5-5, EN 60947-5-5, JIS C8201-5-1, UL508, CSA C22.2 No.14, GB14048.5.
- Impulse withstand voltage is 2.5kV
- Gold-plated silver contacts
- Safety lock mechanism (IEC 60947-5-5, 6.2)
- Direct opening action mechanism (IEC 60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Operating temperature range from -25 to +60°C (no freezing)
- Contact resistance is 50mohm maximum (initial value)
- Insulation resistance is 100Mohm minimum (500V DC megger)
- Operating frequency is 900 operations/hour
- 125V AC contact voltage
- 5A contact current
Product details
| Contact Configuration |
DPST-NC |
| Switch Terminals |
Quick Connect, Solder Lug |
| Contact Voltage AC Nom |
125V |
| Pushbutton Actuator Style |
Mushroom |
| Product Range |
XA Series |
| Switch Operation |
Pushlock, Pull/Turn to Reset |
| Contact Current Max |
5A |
| Contact Voltage DC Nom |
- |
| IP Rating |
IP65 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
IDEC |
| Part Number |
XA1E-BV4U02T-R |
| Quantity |
Each |
| Technical Data Sheet (2.94MB) EN |
View or download |
