NXP MFS8613BMDA0ES System Basis Chip, 4.5 V to 60 V Supply, -40 °C to 125 °C, AEC-Q100, WFHPQFN-48

MFS8613BMDA0ES is a fail-safe system basis chip. The FS86 includes multiple switch mode and linear voltage regulators and enhanced safety features with Failsafe outputs. The latest NXP HV buck architecture features a 15A capability with e-fuse protection to shut down the system power, to prevent any damage in case of a harmful event. The ability to monitor ten voltages with ±1% accuracy extends the system safety concept by allowing QM rails from non-NXP components to be monitored. The FS86 is part of a complete family of devices that offer scalability in power and safety and provide pin-to-pin and software compatibility. It is developed in compliance with the ISO 26262 standard and is qualified according to AEC-Q100 requirements.

• 60V DC maximum input voltage for 24V battery network applications
• Supports operating voltage range down to 4.5V battery voltage with VPRE = 3.3V
• Low power OFF mode with low sleep current (10µA typ.)
• 2x input pins for wake-up detection, 3.3V compatible and battery voltage sensing capability
• Analog multiplexer with full system voltages monitoring
• Enhanced leader/follower power-up sequencing management through XFAILB pin
• 10ms optional RSTB release delay during power up for certain MCU compliancy
• MCU hardware failure monitoring with PWM monitoring capability (FCCU)

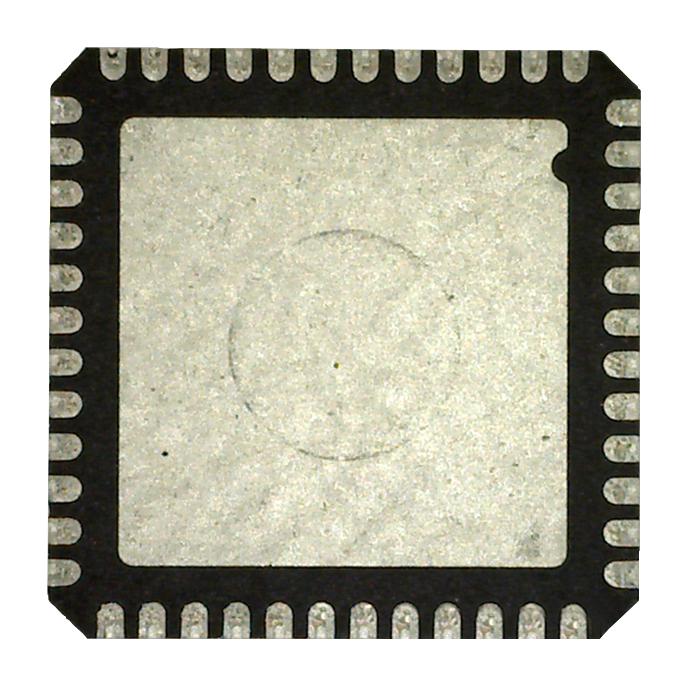

• HPQFN48eP package
• Ambient temperature (grade 1) range from -40 to 125°C
