Product Overview
MVR5510AVMANEP is a VR5510 multi-output power management IC that focuses on gateway, in-vehicle networks, domain controllers, telematics and V2X communications. The device includes multiple high-efficiency switch modes and linear voltage regulators. It offers external frequency synchronization on inputs and outputs for optimized system EMC performance. The VR5510 includes enhanced safety features with fail-safe outputs. It complies with the ISO 26262 standard. Typical applications include gateway, in-vehicle networks, domain controllers, telematics, V2X communications.
- 60V DC maximum input voltage
- Low-power standby mode with very low quiescent current (35μA with VPRE and HVLDO ON)
- 2x input pins for wake-up detection and battery voltage sense
- Device control via I2C interface with CRC (up to 3.4MHz)
- Dual device operation possible via dedicated synchronization pin
- QM safety level
- Ambient temperature (industrial) range from -40 to 105°C
- 56-pin HVQFN package
Product details
| IC Type |
PMIC |
| No. of Step-Down DC - DC Converters |
4 |
| No. of Regulated Outputs |
9 |
| No. of Pins |
56Pins |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Supply Voltage |
60V |
| No. of LDO Regulators |
4 |
| IC Case / Package |
HVQFN |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q100 |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
NXP |
| Part Number |
MVR5510AVMANEP |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

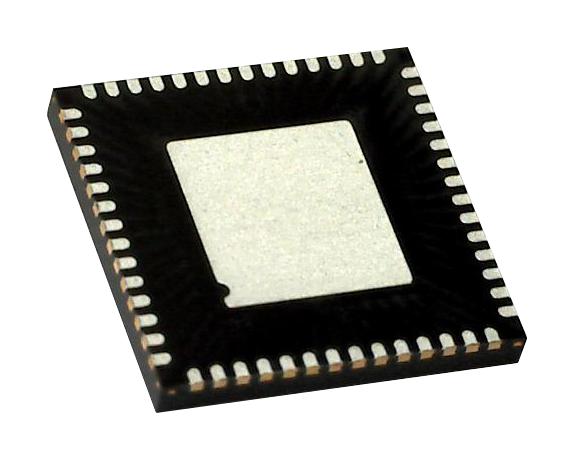

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
