Product Overview
MVR5510AVMA4EP is a VR5510 multi-channel high-voltage PMIC device designed to be used for high performance industrial applications. The VR5510 is designed specifically for the S32G vehicle network processor family targeting service-oriented gateways, domain controllers, and safety controller applications. VR5510 is also suitable for a variety of applications including infotainment, telematics, V2X communications, ADAS, vision, and radar either as a standalone power solution or in combination with other NXP PMICs like PF502x family or PF8x family.
- 60V DC maximum input voltage
- Low-power standby mode with very low quiescent current (35μA with VPRE and HVLDO on)
- 2x input pins for wake-up detection and battery voltage sense
- Device control via I²C interface with cyclic redundancy check (CRC) (up to 3.4MHz)
- Dual device operation possible via dedicated synchronization pin
- One low power, high voltage LDO, one BOOST regulator with integrated low side switch

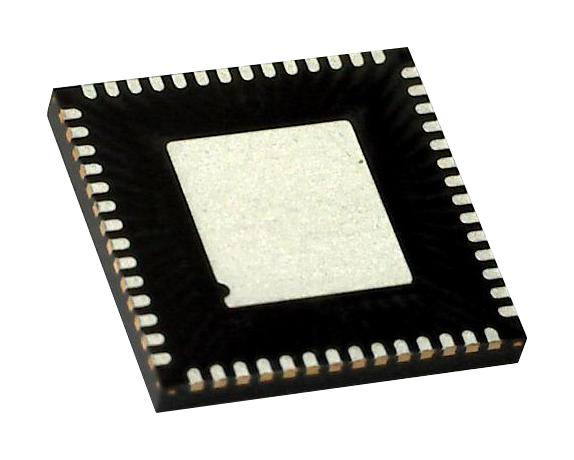

- 56-pin QFN package
- Ambient temperature (industrial) range from -40 to 105°C
Product details
| IC Type |
PMIC |
| No. of Step-Down DC - DC Converters |
4 |
| No. of Regulated Outputs |
9 |
| No. of Pins |
56Pins |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Supply Voltage |
60V |
| No. of LDO Regulators |
4 |
| IC Case / Package |
HVQFN |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q100 |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
NXP |
| Part Number |
MVR5510AVMA4EP |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
