Product Overview
MPF5023CVNA0ES is a PF5023 power management integrated circuit (PMIC) for high performance applications. The PF5023 integrates multiple high performance buck regulators. It can operate as a stand-alone point-of-load regulator IC, or as a companion chip to a larger PMIC. Built-in one-time programmable (OTP) memory stores key startup configurations, drastically reducing external components typically used to set output voltage and sequence of regulators. Regulator parameters are adjustable through high-speed I2C after starting up, offering flexibility for different system states. Typical applications include automotive infotainment, high-end consumer and industrial.
- Three high efficiency buck converters
- Watchdog timer/monitor
- Monitoring circuit to fit ASIL B safety level
- One-time programmable device configuration
- 3.4MHz I2C communication interface
- Clock synchronization through configurable input/output sync pin
- OTP (One-time programmable) memory for device configuration
- Independent enable input for each regulator
- HVQFN40 package
- Temperature grade is 105°C
Product details
| IC Type |
PMIC for i.MX, S32 Processors |
| No. of Step-Down DC - DC Converters |
3 |
| No. of Regulated Outputs |
3 |
| No. of Pins |
40Pins |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Supply Voltage |
5.5V |
| No. of LDO Regulators |
- |
| IC Case / Package |
HVQFN |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q100 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
NXP |
| Part Number |
MPF5023CVNA0ES |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

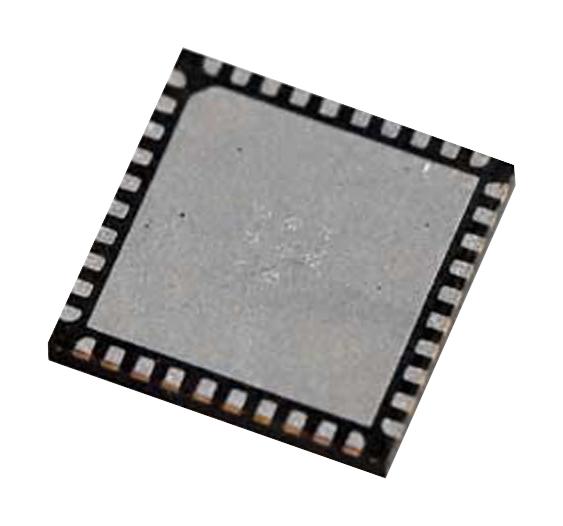

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
