Product Overview
MFS5600AMEA0ES integrates a battery-connected DC-DC controller with external FETs and a battery connected DCDC converter with internal FETs. It also offers functional safety features such as independent voltage monitors, windowed watchdog timer, I/O monitoring via ERRMON and FCCU, and built-in self-test. Typical applications include infotainment/cluster/driver awareness, telematics, V2X, radar, vision, ADAS, sensor fusion.
- High-efficiency PFM mode
- Two internal and up to four high-accuracy external voltage monitors
- Windowed watchdog timer, ERRMON and FCCU monitoring
- 2 x PGOOD and 1 x FS0B outputs, ABIST and LBIST for latest failure check
- GPIOs for seamless operation with PF PMICs
- AEC-Q100 grade-1 qualified
- Enhanced ASIL B safety grade
- Automotive ambient operating temperature range from –40 to 125°C

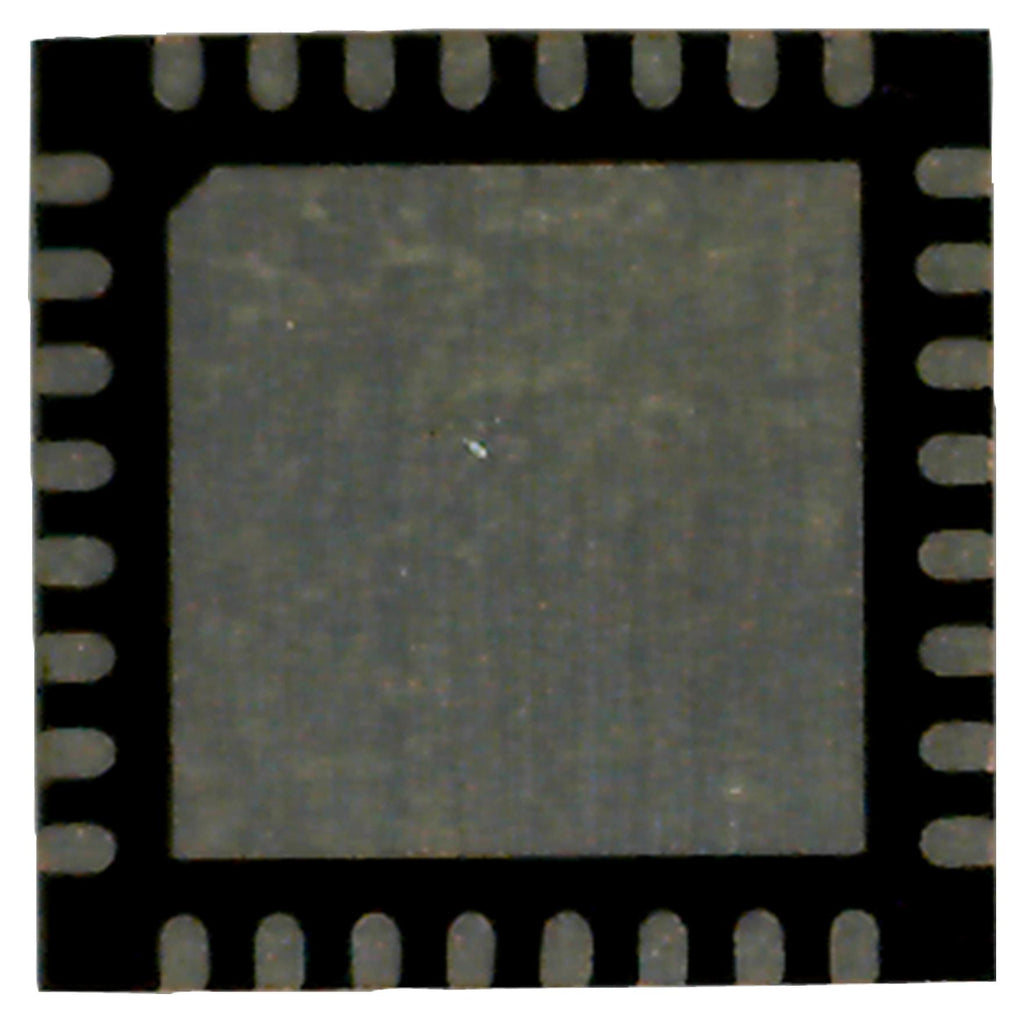

- 32-pin HVQFN package
Product details
| IC Type |
PMIC |
| No. of Step-Down DC - DC Converters |
2 |
| No. of Regulated Outputs |
2 |
| No. of Pins |
32Pins |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Supply Voltage |
40V |
| No. of LDO Regulators |
- |
| IC Case / Package |
HVQFN |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q100 |
| SVHC |
No SVHC (25-Jun-2025) |
